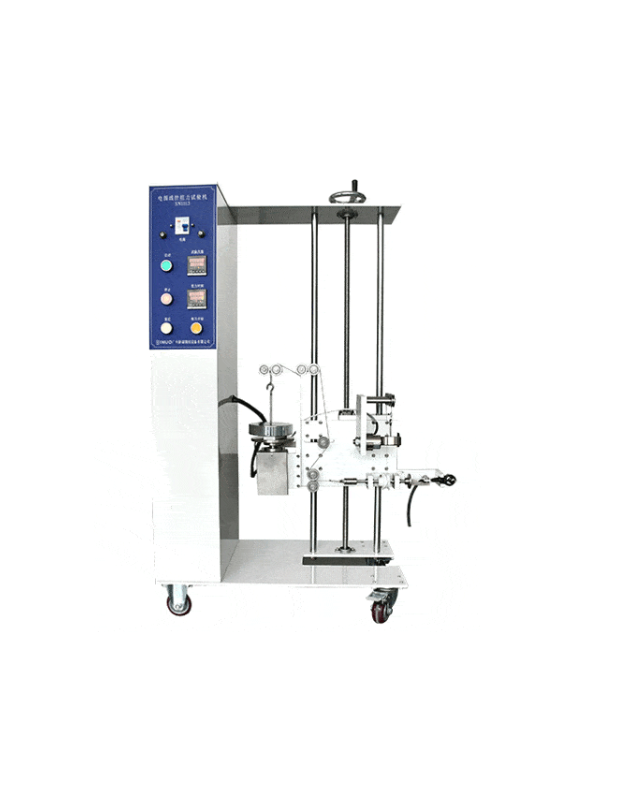

Sinuo SN1113 Cord Anchorage Pull Force And Torque Test Apparatus

Power Supply: AC220V, 50Hz

Pull force weights: 10N*2, 20N*2, 30N*2（ the pulling force of 30N, 60N, 80N, 100N can be achieved）

Torque weights: 5N*1,12.5N*1,17.5N*1(the torque force 0.1Nm, 0.25Nm, 0.35Nm can be achieved)

Test times: 0~9999(selectable)， 25 times is by default

Pull force frequency: 1 times/s

Torque arm: 20mm

Torque time: 0.01S～99 hours 99 min

Clamp: Combined clamp for both pull force and torque, matching by the bearing, can reduce the friction when processing torque test
