Power supply: AC220V, 60Hz, 2KW
Load pressure sensor range and accuracy: 0～2000N Accuracy class 0.5
Swing cylinder specifications: Cylinder inner diameter φ50mm, stroke 125mm
Press plate specification: Diameter φ76.2mm, thickness 19mm
Left and right force time: 0-99.9S (adjustable)
Left and right force angle: Angle of force is adjustable
Static cylinder specifications: The inner diameter of the cylinder is φ63mm, the stroke is 150mm, and the front end is connected with a steel block of Φ160mm*10mm (there is a rubber pad under the steel block, the thickness is 13mm, and the Shore hardness is 65±5)
Test frequency: 10-20 times/min
Opening and closing angle: ≥70°adjustable
Opening and closing time: 0-99.9S (adjustable)
Opening and closing motor: 400W Panasonic Servo
Control method: Weinview 7-inch touch screen + Mitsubishi PLC control
Structure: Industrial aluminum frame + platform
Size: About 2500X700X1400 mm
Test time: 0-999999 times can be set
Datasheet

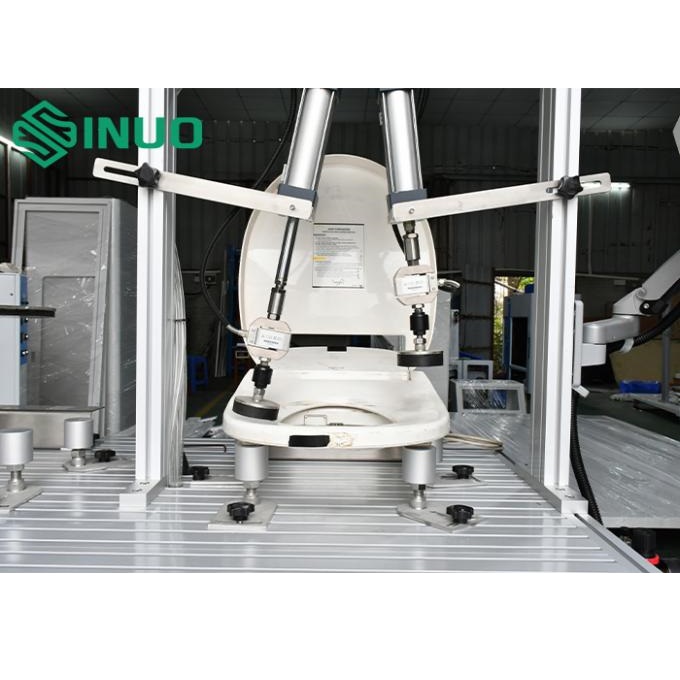

Test Content For Comprehensive Mechanical Strength Testing Machine:
1. Opening and closing of the seat ring.
2. Slow-falling function life test.
3. Strong pressure test.
4. Swing test.
5. Static pressure test.
Test station: Three stations can test independently at the same time (1 station for swing test, 1 station for static pressure test, 1 station for opening and closing, slow down, and 1 station for strong pressure test)
Functional action and driving method: The swing test adopts the cylinder drive mode, the impact test adopts the cylinder drive mode, and the opening and closing, slow falling, and strong pressure tests adopt the servo motor drive mode (fixtures need to be replaced)
Swing and impact force mode: The cylinder is pressurized and regulated by regulating the gas valve through the pressure sensor
