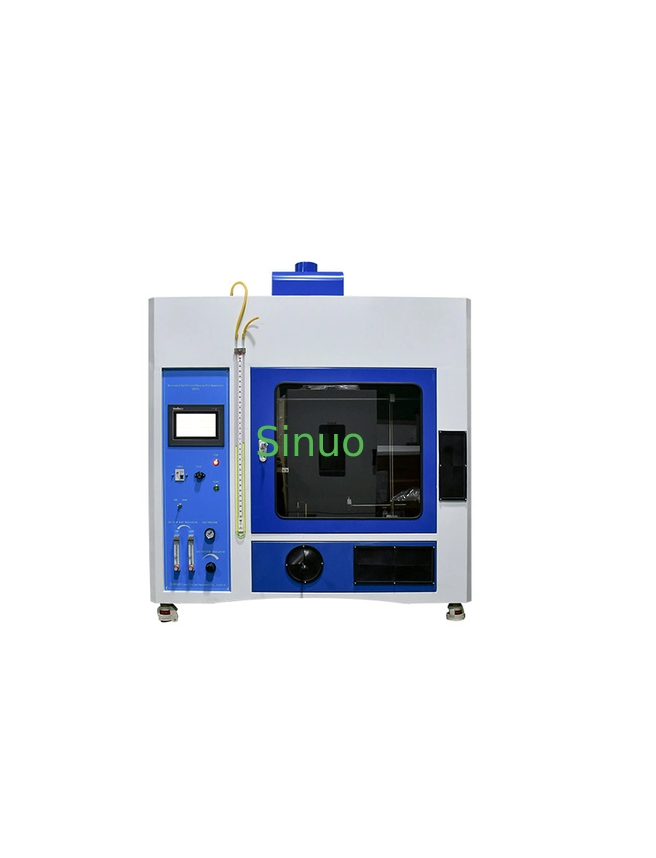

Sinuo SN771 Horizontal And Vertical Burning Test Apparatus With PLC Control

Working voltage: 220V/50Hz

Power/grade: 50W and 500W double power switching

Control operation mode: PLC control, 7-inch color touch screen operation, with infrared remote controller

Gas pressure: 0.1MPa

Gas flow: 50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment

U type pressure gauge back pressure water column height: 50W:10mm; 500W:125±5 mm

Test angle: 50W: 0°,45°; 500W: 20°

Burning time: 0-9999X0.1S Can be preset

Burning times: 0-9999 times,Can be preset

Residual flame/Residual glow: 0-9999X0.1S Can be displayed

Test flame calibration: Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g；500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g

Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°

Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm

Flame height: 50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm

Temperature rise time from 100±2°to 700°±3°50W: 44±2S; 500W: 54±2S

Lighting: Equip with lighting in the test chamber, with control

Test chamber and dimension: > 0.75 cube, black inwall, with exhaust fan, dimension:1100*550*1200mm, 140kg
