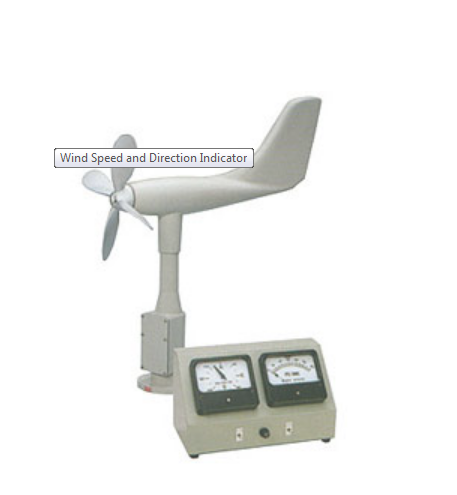

skSATO 7790-00 Wind Speed and Direction Indicator (2~60m/s)

Wind speed and direction sensor

Transducer: Wind speed: 4 blade propeller (AC generator)

Wind direction: Counterbalanced tail (synchro motor)

Starting speed: 2 m/s

Withstand speed: 90 m/s

Type: Wind speed: rectifying voltmeter

Wind direction: synchro motor

Cable: 20m (7 conductor)

Dimensions: (W) 690 x (H) 760 mm

Weight: ~3.0 kg

Indicator

Measuring range: Wind speed: 2 to 60 m/s (option: 2 to 70m/s) (min. scale 1 m/s)

Wind direction: 360° continuous N, NE, E, SE, S, SW, W, NW (min. scale: 1/16 cardinal points)

Accuracy: Wind speed: ±0.5 m/s (<10 m/s)

±5 % (>10 m/s)

Wind direction: ±5°

Power requirements: 100 VAC (50/60 Hz) ± 10% (other voltage is available)

Operation ambient: -10 to 50°C, 40 to 85% rh

Dimensions: (H) 170 x (W) 300 x (D) 150 mm

Weight: ~3.6 kg
