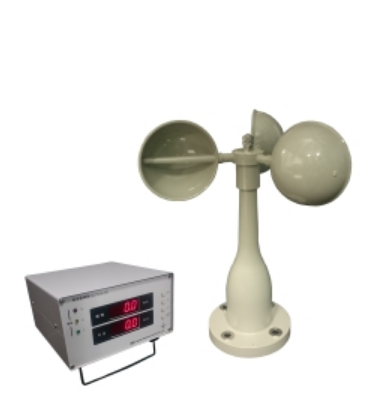

Applicable sensor: No.7915-00 3-Cup type anemometer (W11)
Input signal: 30V±1V AC (no load) at 60m/s
Display: Red 7-segment LED 4 digits height: 14.2mm (upper and lower)
Display elements: Instantaneous wind speed and mean wind speed for 10 minutes
Display range: 0~99.9m/s
Sampling: approx. 1 sec. (lighting hold time)
Alarm elements: Instantaneous or mean wind speed (alarm setting range: 5~90m/s)
* Judgement condition is the mutual setting for first, second and third alarms.
Alarm output:
-First alarm:
+ Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)
+ Green LED blinking (slow)
+ Buzzer sound (slow continuant)
-Second alarm:
+ Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)
+ Yellow LED blinking (fast)
+ Buzzer sound (fast continuant)
-Third alarm:
+ Non-voltage make contact, Contact capacity: 24VDC 1A (resistance load)
+ Red LED blinking (continuous)
+ Buzzer sound (continuous sound)
Alarm reset: Contact output and LED display: When the wind speed is lower than the alarm setting value
Buzzer sound: to stop the buzzer with the button in the front panel
Operation ambient: 0 ~ 50°C, lower than 90%rh (but no condensing)
Remote distance: within approx. 2km (in use of CVVS 1.25mm2 cable)
Case: Steel plate, desk-top type (with rubber foot and tilt stand)
Power requirement: 100VAC±10%, 50/60Hz, approx. 15VA
Dimensions: approx. (W)200×(H)110×(D)200mm
Weight: ~ 3.5kg
