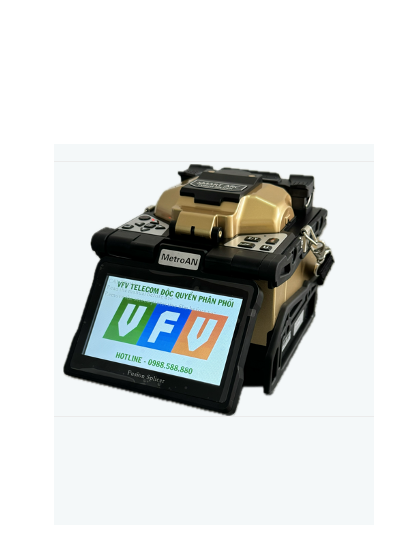

SKYCOM VFV-90S-MAX Fusion Splice

Fiber splicing time: 8 seconds

Heat shrink time: 25 seconds

Compact design, easy to carry and convenient to use

Image magnification: X or Y magnified 420 times, or simultaneously 220 times

Tensile test: 2.0 N (standard)

Result storage: Stores up to 6,000 latest splice results

Operation modes: Manual / Semi-Automatic / Fully Automatic

Automatic fiber alignment and arc discharge in auto mode

Displays splicing process and optical loss on screen

Typical splice loss:

0.02 dB (SM)

0.01 dB (MM)

0.04 dB (NZDS)

0.04 dB (EDF)

Return Loss: > 60 dB

Display: 4.3-inch full-color LCD screen

Dimensions: 120(W) × 120(D) × 130(H) mm

Weight: 1.29 kg (main unit) + 0.38 kg (battery) = 2.06 kg
