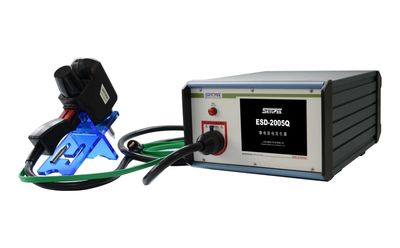

Skylark ESD-2005Q Electrostatic Discharge Generator (0,1 - 30KV + 3%)

Output voltage:

- Contact discharge: 0.1 - 30KV +3%

- Air discharge: 0.1 - 30KV +3%

Holding time: >5s

Polarity of output voltage: Positive, negative, positive/negative auto

Trigger mode:Single, counting, 20pps other

Discharge interval: 0.05-99.99s

Numbers of discharge: 1-9999

Energy storage capacitance: 150pF +10%(replaceable)

Discharge resistor: 3300+10% (replaceable)

Waveform of contact discharge: Meet the standards of EN/IEC 61000-4-2, GB/T 17626.2

Rising time: 0.8ns +25%

Environment: Temperature: 15°C - 35°C; Humidity: 10% - 75%

Power supply: AC220-10%, 50/60Hz, 300W

Dimension: 260mm(W)x170mm(H)x360mm(D)

Weight: About 5kg
