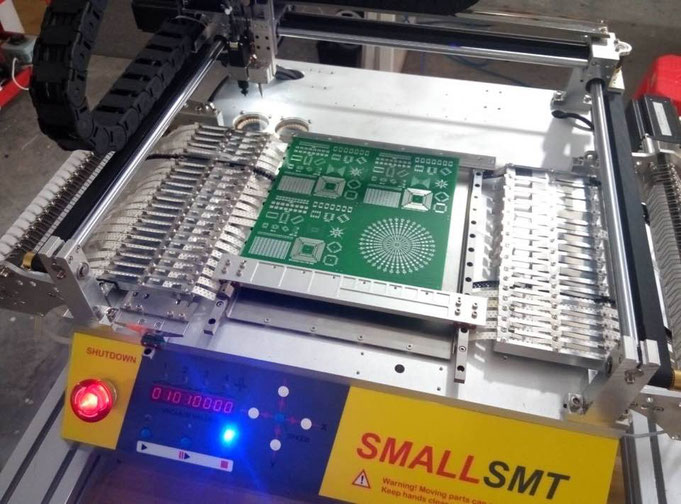

This machine has 1 heads and up to 40 x 8mm Feeders
VP-2000S single head 360 degrees continuous rotation,(gallery)
1x top and 2x bottom cameras have a different optical magnification,
Standard feeder configuration is 20 x8mm west and 4x 16mm, 5x 12mm, 7x 8mm east
up to 40 x 8mm feeders plus build in tray option,
west and east feeder included,
Drag needle on head 2.
4 slot nozzle changer included,
240 x 250mm working area, Z axis travel height is 15mm maximum part height 12mm,
capable to mount 0402,0603,0805,1206 and bigger, SOP, QFN, TQFP with minimum 0,5mm pitch,
machine steering keyboard for run / pause / stop and axis movement,
vacuum display for each placement head,
CP45 nozzles snap in holder,
3 nozzles included 1x CN040 1x CN065 + 1x CN220,
Placement speed above 2000pcs / hour!
Mains supply is 110V / 230V AC 50 / 60Hz 400W
All axis are driven by Japanese Stepper motors.
32 Bit ARM build in controller system connected to PC by USB interface
