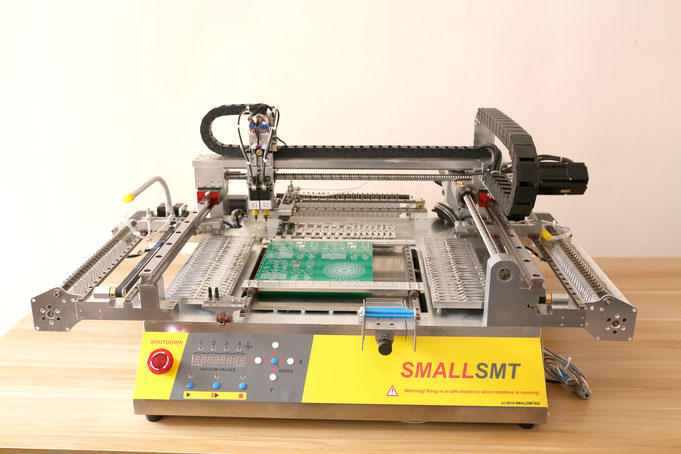

This machine has 2 heads and up to 71 Feeders
New! X and Y axis have ball screw spindle linear guides and servo motors high precision machine!
VP-2500HP dual head 360 degrees continuous rotation, (gallery)
1x top and 2x bottom cameras have a different optical magnification,
nozzle changer included!
up to 49 x 8mm feeders plus build in tray option plus 24 possible east feeder lines,
WEST feeder 24 x 8mm lines,
NORTH feeder custom 13x 8mm + 4x 12mm + 4x 16mm as a sample configuration, or 25x 8mm,
EAST feeder 24 x 8mm lines,
the west feeder is standard North feeder optional,
Pneumatic push feeder design the head don't need to wait for pickup because of tape dragging is processed in advance.
360 x 320mm working area, Z axis travel height is 15mm maximum part height 12mm,
capable to mount 0402,0603,0805,1206 and bigger, SOP, QFN, TQFP with minimum 0,35mm pitch,
machine steering keyboard for run / pause / stop and axis movement,
vacuum display for each placement head,
CP45 nozzles snap in holder,
3 nozzles included 2x CN065 + 1x CN220,
Placement speed above 3600pcs / hour!
Mains supply is 110V / 230V AC 50 / 60Hz 400W
X axis 200W Servo motor
Y axis 600W Servo motor
32 Bit ARM build in controller system connected to PC by USB interface
