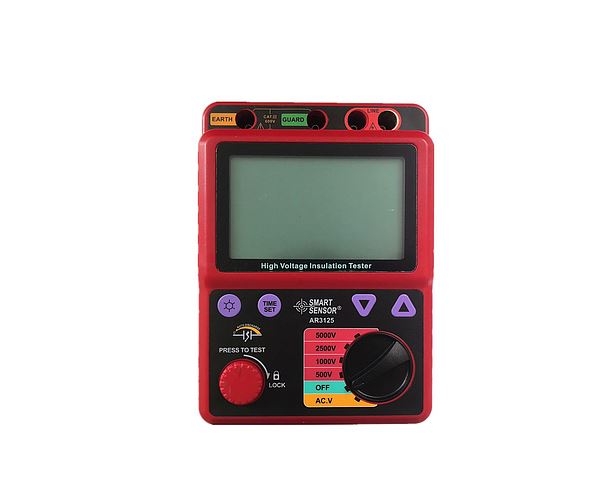

SmartSensor AR3125 Voltage Insulation Tester (500V/1000V/2500V/5000V, 0 - 1TΩ )

Name: SmartSensor AR3125 Voltage Insulation Tester (500V/1000V/2500V/5000V, 0 - 1TΩ )
Brand: SMARTSENSOR

ModelAR3125

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

SPECIFICATIONS

Rated Voltage: 500V/1000V/2500V/5000V

Testing Range:

+500V:0.0~999MΩ

+1000V:0.0~1.99GΩ

+2500V:0.0~99.9GΩ

+5000V:0.0~1000GΩ

Accuracy: ±5%rdg±5dgt

Resolution: 1.0V

DC/AC Voltage Test: 30~600V

Overload Protect: AC 1200V/10sec

Withstand Voltage: AC 8320V/5 sec

Insulated Impedance: 1000MΩ

Max. Short Circuit Current: 1.4mA

Polarization Index: √

External DC Adapter: √

Power: C*8 battery

Product Net Weight: 1027g

Product Size: 153*213*95mm
