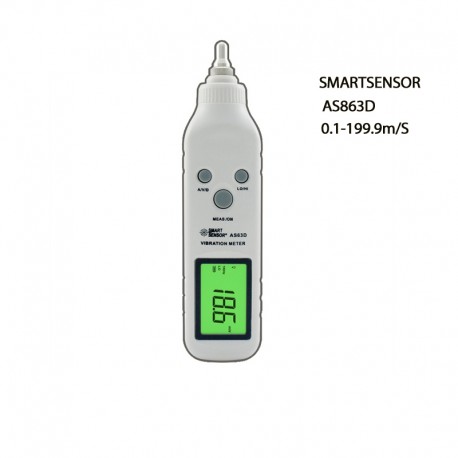

Smartsensor AS63D Pen Type Vibration Meter (0.1~199.9m/s2; ±10%H ±2)

Measuring Principle: Piezoelectric Ceramic Accelerometer (shear-type)

Acceleration Range: 0.1~199.9m/s2

Velocity Range: 0.1~199.9m/s

Displacement Range: 0.001~1.999mm

Acceleration Frequency Range: 10Hz~1KHz (LO)/1KHz~15KHz (HI)

Velocity Frequency Range: 10Hz~1KHz

Displacement Frequency Range: 10Hz~1KHz

Accuracy: ±10%H ±2 digits

Signal Output : no

Max Reading Hold Function: no

Temperature Measurement: no

℃/℉ Selection: no

Power: 2x1.5V AA Battery

Dimensions: 180*42.5*30mm

Weight: 115g
