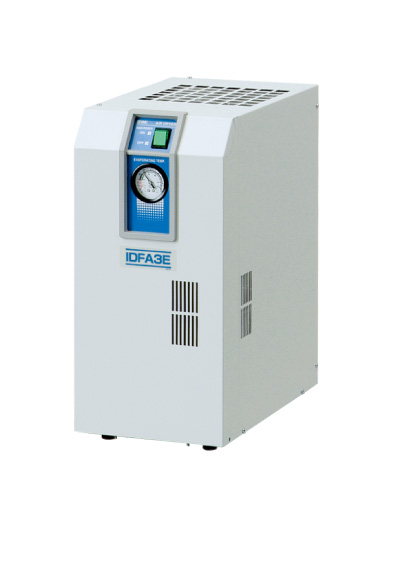

SMC IDFA3E-23 Refrigerated Air Dryer (0.15 ~ 1.0 MPa)

Fluid: Compressed Air

Inlet air temperature range: 5 to 50 °C

Inlet air pressure: 0.15 to 1.0 MPa (Option K, L, V: 1.6 MPa)

Ambient temperature: 2 to 40 °C (Relative humidity 85% or less)

Rated Condition

Outlet air flow (pressure dew point 3°C): 12 (m³/h ANR)

Outlet air flow (pressure dew point 7°C): 15 (m³/h ANR)

Outlet air flow (pressure dew point 10°C): 17 (m³/h ANR)

Compressed Air Condition (Inlet air pressure 0.7 MPa, inlet temp. 35°C, ambient 25°C)

Outlet air flow (pressure dew point 3°C): 13 (m³/h ANR)

Outlet air flow (pressure dew point 7°C): 16 (m³/h ANR)

Outlet air flow (pressure dew point 10°C): 18 (m³/h ANR)

Electrical Specification

Voltage: 1Φ 230VAC 50Hz

Power supply: 1Φ 230VAC ±10%, 50Hz

Operating current: 1.5 A

Power consumption: 190 W

Others

Earth leakage breaker capacity: 5 A

SCCR: 5 kA

Noise level: 70 dB(A) or less

Condenser: Air cooling

Refrigerant: R1234yf (HFO) GWP=0.501

Refrigerant charge quantity: 150 ± 5 g

Port size: Rc3/8

Accessory: R3/8 (Hexagon nipple)

Drain connection (Outside diameter of tubing): R3/8

Coating color: Panel: White 1, Base: Gray 2

Weight: 18 kg
