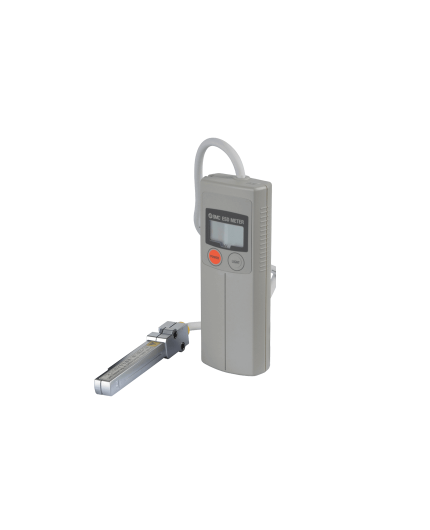

SMC IZH10 Handheld Electrostatic Meter (±20.0 kV)

Rated charge amount range: ±20.0kV

Minimum display unit: 0.1 kV (±1.0 kV to ±20.0 kV), 0.01 kV (0 to ±0.99 kV)

Measurement distance: 50 mm (between sensor part and measured target)

Power supply (Note 1): 1.5 VDC 2A alkali dry cell battery, 2 pcs (continuous use for 15 hours or more, see Note 2))

Display accuracy: ±5％F.S.±1digit

Environment:

Enclosure: IP40

Operating temperature range: Operating: 0 to 40°C, Stored: –10 to 60°C (with no freezing or condensation)

Operating temperature range: Operating/Stored: 35 to 85% R.H. (with no condensation)

Vibration resistance:  10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or 98 m/s2 acceleration, in X, Y, Z directions for 2 hs. each (De-energized)

Impact resistance: 100 m/s2 in X, Y, Z directions 3 times each (De-energized)

Material: Display part: PC/ABS Sensor part: ABS

Weight: 85 g (excuding dry cell batteries)

Standards: 85 g (excluding dry cell batteries)

Accessories: Ground wire, Soft case

Note 1) 2A alkali dry cell batteries are not included, and must be acquired separately.

Note 2) When new alkali dry cell batteries are used at ordinary temperature.
