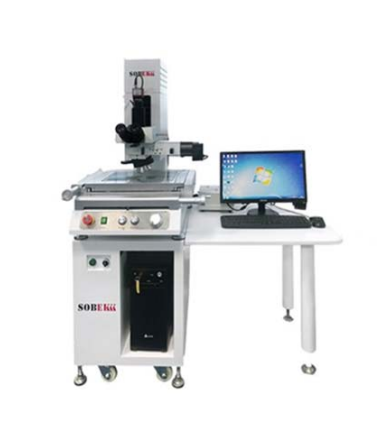

Sobekk MC-400 Metallographic Tool-Make Microscope

Table travel range(XYZ): 400*300*150mm

Dimension: 1000*800*980mm

Resolution: 0.0001mm

Accuracy: （2+L/200) um

Repeatability accuracy: 2um

X.Y move style: Manual

Z move style: Automatic focus(software)+ Manual pulse focus(min move distance 0.1um)

CCD: 1.3M digital color CCD

Software: SBK-MM

Work-table loading: 30KG

Illuminating system: Cold light source transmission lighting, 10W LED reflection lighting

Nosepiece: Five-hole objective rotary table (with DIC slot)

Optical eyepiece tube: Trinocular tube

Eyepiece: WF 10X/22

Adaptor lens: 0.5X

Magnification: Optics:50X-500X, Vision:162X-1570X

Metallographic objective Lens (Bright filed lens)

LWDPLAN 5X: (N.A) 0.14, working distance :10.8mm

LWDPLAN 10X: (N.A) 0.25, working distance:10.0mm

LWDPLAN 20X: (N.A) 0.40, working distance: 4.0 mm

LWDPLAN 50X: (N.A)0.55, working distance: 7.5 mm

Optical system: CSIC infinity correction optical system

Power: 220V±10% ，50Hz , 0.5KW

Environment require: temperature range：22±2℃，humidity range：30%-70%

Optional parts: 100X lens, Dark-field, polarized, DIC(differential interference contrast)
