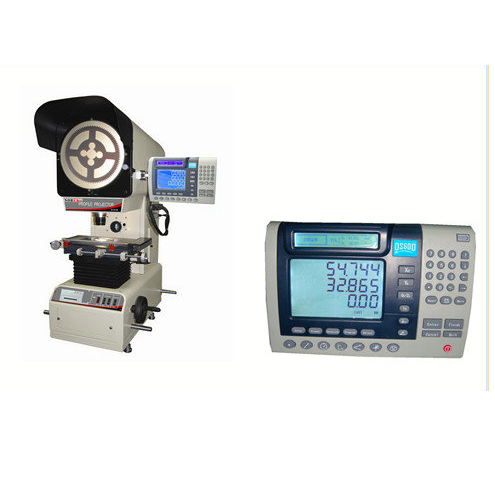

Metal stage size: 400×225mm
Glass stage size: 210×112mm
Travel—X, Y axis: 200×100mm
Z axis travel: 80mm
Over dimensions: 380×806×1065mm
Weight:180kg
Projection screen: effective diameter (mm): φ300mm, working scope＞φ300
Projection screen’s rotation angle: 0～360°
Resolution of rotation angle: 0.01° or 1′
Accuracy of the rotary angle: 6′
Object lens’s magnification: 10×（standard） 20×（optional） 50×（optional） 100×（optional）
View-field of object (mm): φ30 φ15 φ6 φ3
Working distance for object (mm): 75 69 26 26
Resolution of X Y:0.001mm(digital display)
Accuracy: (3+L/75)μm
Stage support: 3kg
Data processor:DS-401 or DS600
Ascent and descent mechanism:45 ° oblique tooth gear
Profile light source: 12V/100W tungsten halogen lamp
surface light source: 24V/150W tungsten halogen lamp
Power supply: 110V/220V (switch) ; 50/60HZ(switch)
Optional accessories: attached RS232 interface, optional 2D measuring software
