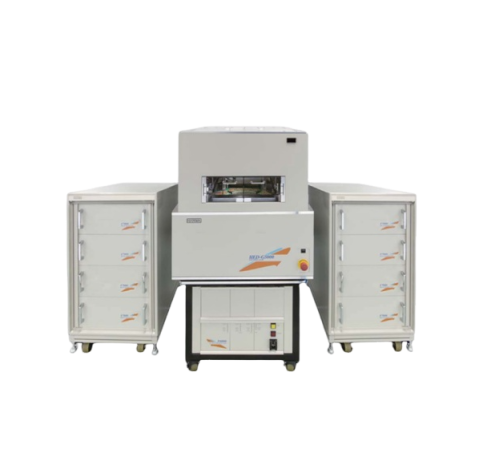

SPIROX HED-G5000 Automatic ESD Tester (10MHz, 0.5 ~ 5V)
ManufacturerSPIROX(View more products from this manufacturer)
ModelHED-G5000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Design Base: Mechanical
Matrix: No Relay System
Test Model: HBM, MM & Latch Up Customize Available
Test Level
HBM: 10V to 8kV step 5V
MM: 10V to 4kV step 5V
Latch Up: 100V/1A, 35V/1A
Latch Up: JESD78 with Vector Option
Vector: 10MHz max, 0.5 ~ 5V, 256k depth
Pin Count: Max 2048 Customize Available
DUT V/I Supplies: Max 7: 100V/1A, 35V/1A, 1A/100V
Dimensions: (W)200cm*(D)105cm*(H)150cm Depend on System
Weight: 500kg

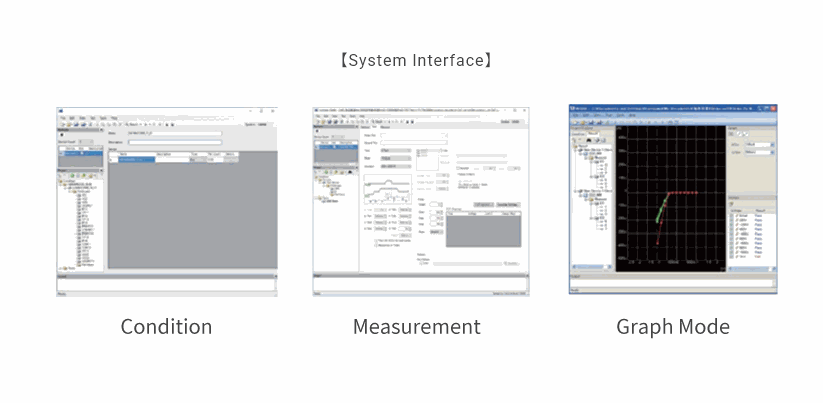

Operation System: Windows
AC Voltage: 100-240V/20A
Function description
