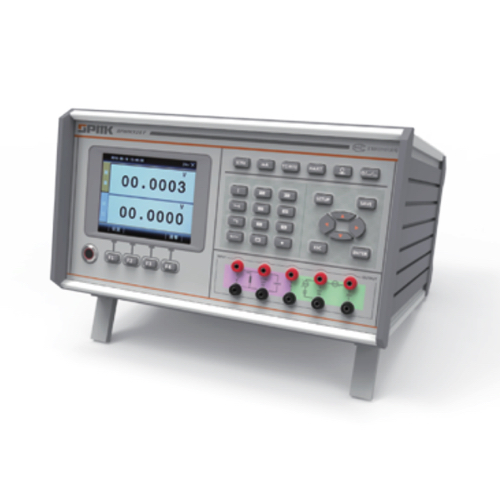

SPMK SPMK516T Desktop Process Calibrator

Measurement/Output of Current: (−30 ～ +30) mA

Current Accuracy (Measurement): ±(0.01% RD + 0.005% FS)

Current Resolution (Measurement): 0.1 µA

Voltage Measurement Range: (−30 ～ +30) V

Voltage Accuracy (Measurement): ±(0.01% RD + 0.005% FS)

Voltage Resolution (Measurement): 0.1 mV

Millivolt Measurement Range: (−75 ～ +75) mV

Millivolt Accuracy (Measurement): ±(0.01% RD + 0.005% FS)

Millivolt Resolution (Measurement): 0.1 µV

Resistance Measurement Range: 0–400 Ω / 0–4000 Ω (3-wire & 4-wire)

Resistance Accuracy (Measurement): ±(0.02% RD + 0.005% FS) / ±(0.01% RD + 0.005% FS)

Frequency Measurement Range: 1–50,000 Hz

Frequency Accuracy (Measurement): ±(0.005% RD + 0.002% FS)

Frequency Resolution: 1 Hz

Pulse Count Range: 0–999,999 pulses

Pulse Accuracy: ±1 pulse

Thermocouple Measurement/Output: 13 types supported (e.g. K: −270 ～ +1372 °C)

RTD Measurement/Output: 11 types supported (e.g. Pt100: −200 ～ +850 °C)

Loop Power Supply: 24 VDC, isolated

Display: 3.5-inch TFT screen (Chinese/English)

Power Supply: 220 VAC, 50 Hz

Dimensions / Weight: 415 × 375 × 240 mm / ~7.6 kg
