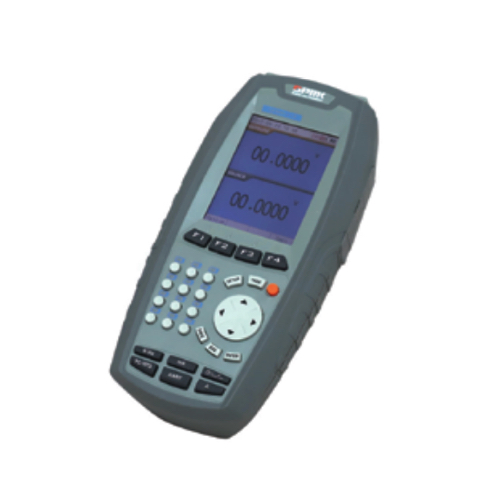

SPMK SPMK510 Multi-function Process Calibrator ((−30 ~ +30) mA; (−30 ~ +30) V)

Current Measurement Range: (−30 ~ +30) mA

Current Measurement Accuracy: ±(0.01% RD + 0.005% FS)

Current Resolution: 0.1 µA

Voltage Measurement Range: (−30 ~ +30) V

Voltage Measurement Accuracy: ±(0.01% RD + 0.005% FS)

 Voltage Resolution: 0.1 mV

Millivolt Measurement Range: (−200 ~ +200) mV

Millivolt Output Range: (−10 ~ +200) mV

Millivolt Accuracy (Measurement/Output): ±(0.01% RD + 0.005% FS)

Millivolt Resolution: 0.1 µV

Resistance Measurement Range (3W/4W): (0 ~ 2000) Ω

Loop Integrity Test Range: (0 ~ 2000) Ω

Resistance Resolution: 1 mΩ / 10 mΩ

Frequency Measurement Range: 1 ~ 50,000 Hz

Frequency Accuracy: ±(0.005% RD + 0.002% FS)

Frequency Resolution: 1 Hz

Pulse Count Range: 0 ~ 999,999 pulses

Pulse Accuracy: ±1 pulse

Display: 6-digit high-resolution TFT display

Dimensions / Weight: 208 mm (L) × 101 mm (W) × 55 mm (H) / 0.7 kg
