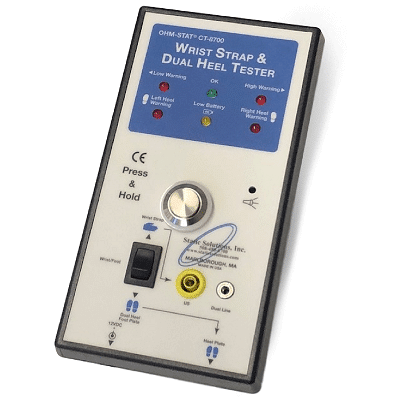

Static Solutions CT-8720 Ohm-Stat™ Wrist Strap/Heel Grounder Tester Kit (Meter only)

Dimensions: 4.0 inches wide x 7.5 inches long x 1.5 inches thick (9.5 cm x 15.24 cm x 3.8 cm).

Power Supply: 9-volt battery (IEC6F22) or 12-volt DC adapter.

Test Voltage: 19 volts DC +/- (open circuit).

Accuracy: +/- 10%.

Resistance Ranges:

Wrist Strap: Low - 500k, 750k ohms; High - 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M (optional 1000M).

Heel/Toe/Shoe: Low - 500k, 750k ohms; High - 2M, 5M, 10M, 25M, 75M, 100M (optional 1000M).

Internally selectable.

Foot Plate:

Dimensions: 15.75 inches x 15.75 inches pad (40 cm x 40 cm) featuring two 6 inches x 14 inches stainless steel plates (15.2 cm x 35.6 cm), dual path.

Weight: 2.2 lbs. (1 kg).

Wall Mounting: Hook and loop high strength discs and strips.

Display: Red and green LEDs, high dB buzzer, computer monitor (optional).

Features: Dual path foot plate, toggle switch selector, NIST/CECC limits, micro-processor controlled.

Environment: 32°F - 100°F (0°C - 37°C) : 0% - 85% RH.
