Statico S2020A Analog Surface Resistance Test Kit (10E3 - 10E12)

Technical Data:

Size: 131X65X30mm (LXWXH)

Weight: 240g

Test Range: 10E3 to 10E12

Test Voltage: 10V/100V (Auto Range)

Accuracy: +/-10%

Power Supply: 9 V Alkaline

Battery Test Voltage: Nominal 9 V

Temperature Range:

- Operating: 40° to 120°F (5°-to-49°C)

- Storage: -15° to +60°C

Relative Humidity: 0% to 90% (non-condensing)

Resolution: One Order of Magnitude

Changeover Point: ½ Decade on a Logarithmic Scale (3.16X10n)

Repeatability: ± 5%

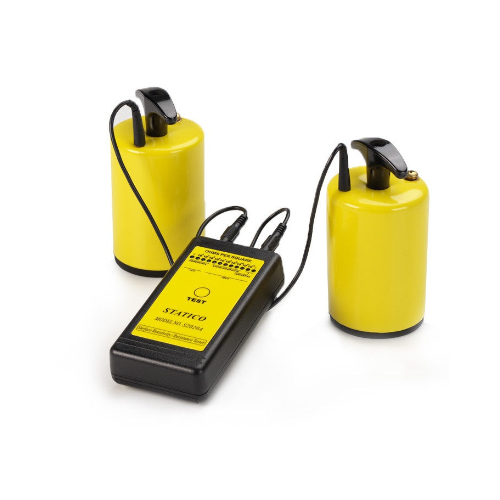

The Kit Consists of:

- 1 Each The Tester (S2020A)

- 1 Each Leather-like Carrying Case

- 1 Each a 9V Battery

- 2 Each Connecting Cords (Tester-To-Probes)

- 2 Each 5 lbs Probes

All are housed in a heavy duty hinged plastic case with foam inserts.
