Electrical Specifications
• Operator Resistance Range: R<6.8 M, +/- 10%
• Ground System Range: R<6.8 M, +/- 10%
• Maximum Wrist Strap Voltage: 2V DC
• Maximum Wrist Strap Current: 1.6 mA DC
• Maximum Mat Voltage: 4V DC
• Maximum Mat Current 1.8 mA DC
Mechanical Specifications
7-1/4”L X 3”W X 1-1/4” H (160mm L X 75mm W X 30mm H)

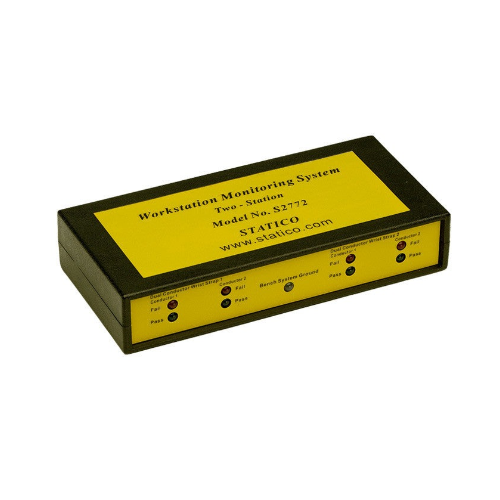

S2772 Includes:
1 Each The Monitor
1 Each An Adapter
1 Each A Connection Cord (Monitor-To-Mat); 81” L (2060mm)
2 Each A Remote Connection Cord (Wrist Strap-To-Monitor); 70” (1780mm)
2 Each 2” L X1” W (50mm L X 30mm W) Hook & Loop Velcro pcs
2 Each Screws
1 Each Alligator Clip
2 Each a Dual Conductor Wrist Strap with 6’ Coil Cord (Also available with 12’
Coil Cord).
