Direct access to our certified experts
Channel
CH1: 0~32V/ 0~3.2A
CH2: 0~32V/ 0~3.2A
CH3: 1.8V/2.5V/3.3V/5.0V switchable, 3.2A (Max. output)
Line Regulation
Voltage
CH1, CH2: ≤1×10^-4+2mV
CH3: ≤1×10^-4+3mV
Current: CH1, CH2: ≤1×10^-4+2mA
Load Regulation
Voltage
CH1, CH2: ≤1×10^-4+3mV
CH3: ≤1×10^-4+3mV
Current: CH1, CH2: ≤1×10^-4+2mA
Programming/Readback Accuracy
Voltage
CH1, CH2: ≤±(0.5%+30mV)
CH3 (no readback): ≤±7%
Current
CH1, CH2: ≤±(0.5%+30mA)
CH3 (no readback): ≥3.2A
Ripple and Noise
Voltage
CH1, CH2: ≤1mVrms
CH3: ≤1mVrms
Current: CH1, CH2: ≤3mArms
Display resolution
Voltage CH1, CH2: 10mV
Current CH1, CH2: 1mA
Display Digits
Voltage: 4 digits
Current: 4 digits
Other function: Auto switch of serial and parallel
General Characteristics
Rated Voltage: AC220(1±10%)V
Rated Power: 500W 670VA
Rated Frequency: 50/60(1±5%)Hz
USB charging Interface: 5V 1A
Remote Interface: USB, LAN (option)
Dimension: 226×140×303mm3
Weight: 8KGs
Standard Accessories
Power Cord: 1pcs
CD( User's Guide): 1pcs
Programmable Linear DC Power Supply Application
Military R&D, Quality detection, Circuit test, Test of industrial manufacture automatization,
Education and Technical Training, Test of electronic assemblies, Aging test
Design Feature

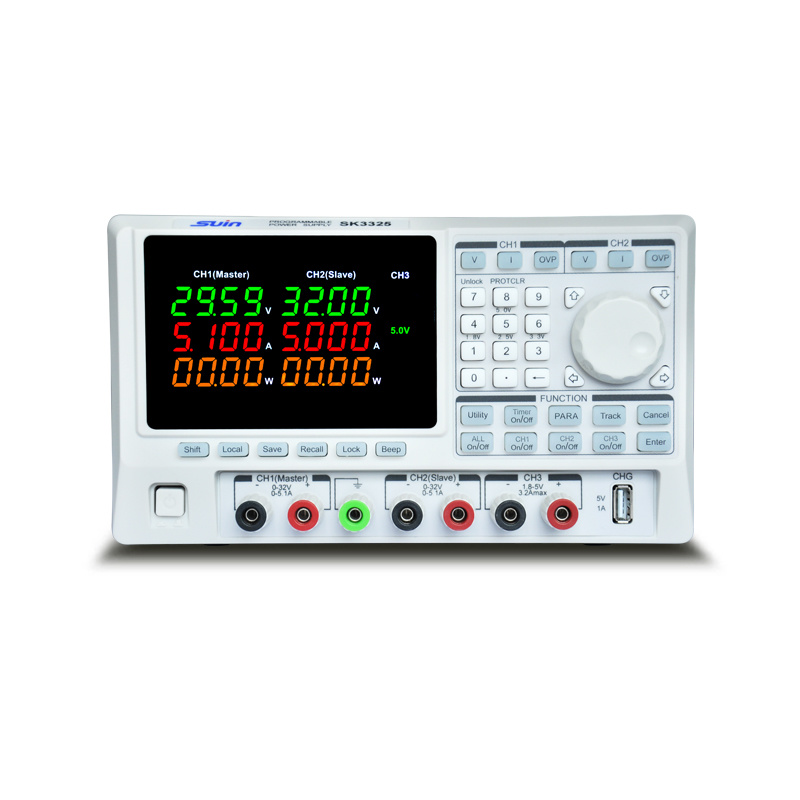

1. 3 independent outputs-two 32V or 50V /5.1A or 3.2A, one 1.8V, 2.5V, 3.3V, 5V/3.2A, maximum 342W.
2. 4 digit voltage and current display, minimum resolution-10mV, 1mA
3. Smart temperature controlled fan to reduce noise effectively.
4. Save/Recall 5 group system set-ups
5. Standard timing output
6. Comprehensive over-voltage protection
Programmable Linear DC Power Supply Key Features:
Linear Regulation:
Stable Output: Provides highly stable and low-noise DC output.
Low Ripple and Noise: Ideal for sensitive analog and RF circuits.
Programmability:
Remote Control: Can be controlled via various interfaces such as USB, Ethernet, GPIB, or RS-232.
Software Integration: Compatible with software for automation, data logging, and complex sequencing.
User-Defined Settings: Ability to set and recall voltage, current, and protection settings.
Precise Adjustment:
Fine Resolution: Allows fine-tuning of output voltage and current with high precision.
Multiple Ranges: Often provides multiple voltage and current ranges to accommodate different requirements.
Protection Features:
Overvoltage Protection (OVP): Protects connected devices from excessive voltage.
Overcurrent Protection (OCP): Limits current to prevent damage to the power supply and the device under test.
Thermal Protection: Shuts down the power supply in case of overheating.
Display and Controls:
Digital Display: Provides real-time readings of output voltage, current, and power.
Intuitive Interface: User-friendly front panel controls for manual operation.
Multiple Output Channels:
Some models offer multiple independent output channels, each programmable, to power several devices simultaneously.
