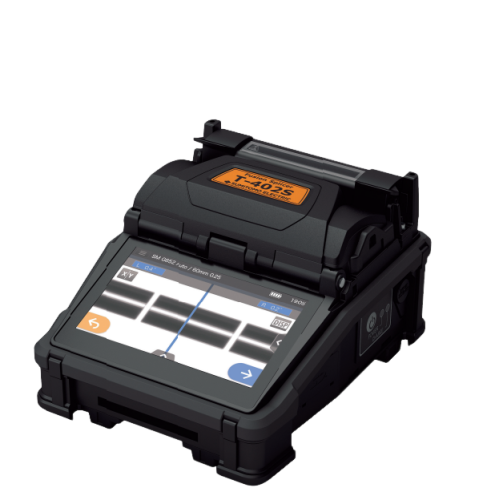

SUMITOMO T-402S Core Alignment Fusion Splicer (Splice time 6s; Heating time 12s)

Optical fiber requirements:

Material: Silica glass

Fiber count/Profile types: Single/SMF(G.652),MMF(G.651),DSF(G.653),NZDSF(G.655),BIF(G.657)

Fiber diameter: Cladding diameter: 125µm,Coating diameter: 250-1,000µm

Cleave length: 5-16mm for single fiber

Standard performance

Splice loss (typical): SMF: 0.03dB, MMF:0.01dB, DSF:0.05dB, NZDSF:0.05dB

Return loss (typical): 60dB or greater

Splice time (typical): 6sec (SM G652 Quick Mode)

Heating time: 12sec (FPS-61-2.6 sleeve, S60mm 0.25 Quick Mode)

Splice & Heat cycles per battery full charge: Approx. 250 (BU-17)

Fiber view & magnification: 2 CMOS cameras observation, 140X (zoom 370X) for X and Y axis view.

Proof test: 1.96 - 2.09N

Applicable protection sleeve: 60mm, 40mm & Sumitomo Nano sleeves

Programs

Splice programs: Max. 300, 16 are pre-optimsed, 284 editable by user

Heating programs: Max. 100, 27 are pre-optimsed, 73 editable by user

Functions

Splice image capture/ Splice data storage: 200 images /10,000 splice data (internal memory only) 50,200/20,000 (with 16GB SD card)

Auto-start: Splice/Heating

Multi clamp: Provided, 250um, 900um tight & loose bufer fiber, 2 & 3mm jacket cord and rectangular drop cable, 3.5mm round drop cable

Size/Weight

Size: 126(W) x 154(D) x 83(H) mm (without protrusion)

Weight: 0.9kg (without Battery) / 1.2kg (with Battery BU-17)

Monitor: 4.3" touch screen color LCD display

Terminals:

USB port: USB 2.0 (mini-B type)

Storage media: SD/SDHC memory card MAX 32GB

Power supply:

AC input: AC100~240V, 50/60Hz (ADC-15)

DC input: DC 10~15V

Battery pack: Li-ion 10.8V, 4.560mAh (BU-17)

Electrode life: 6,000 arc discharges

Basic Accessories: AC adapter 1pc , AC power cord 1pc, Battery pack BU-17 1pc, Quick reference guide 1pc, Carrying case 1pc, Working tray 1pc
