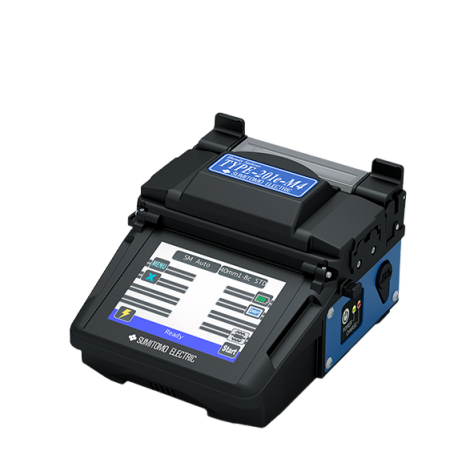

SUMITOMO TYPE-201e-VS Handheld fusion splicer (Splice time 11s; Heating time 30s)

Optical fiber requirements:

- Material: Silica glass

- Fiber count: 1

- Profile types: SMF (G.652),MMF(G.651),DSF(G.653),NZDSF(G.655),BIF(G.657)
- Fiber diameter: Cladding diameter: 125µm; Coating diameter : 250µm, 500µm, 900µm

- Applicable cable: Drop cable (2.0x3.1or 2.6 mmm), Indoor cable (2.0x1.6 mm)

- Cleave length: 5-10mm

Standard performance

- Splice loss (typical): SMF:0.05dB, MMF:0.03dB, DSF:0.08dB, NZDSF:0.08dB (With identical Sumitomo fibres)

- Splice time (typical): Approx.11 sec (1C SMF)

- Heating time: Approx.30 sec (with FPS-61-2.6 sleeve)

- Splice & Heat cycles per battery full charge: 100 (BU-12L)

- Fiber view & magnification: 2 CMOS cameras observation; 72X (Z00M:216X)

- Proof test: 1.96 - 2.09N

Programs

- Splice programs: Max. 200

- Heating programs: Max. 100

Functions

- Splice image capture/ Splice data storage: 64 images /10,000 splices

- Onboard user training video: Provided for basic operation and daily maintenance

- Auto-start: Splice/Heating

- Automatic arc calibration: Automatically optimizes arc power according to environmental conditions (Auto mode)

- Remote interactive maintenance: Provided

Size/Weight

- Size: 110(W) x 140(D) x 176(H) mm

- Weight: 620g (without Battery)/770g(with Battery BU-12S)/860g (with Battery BU-12L)

- Monitor: 3.5" color monitor with touch screen

Terminals:

 - USB port: USB 2.0 (mini-B type)

- Storage media: microSD and microSDHC

Power supply:

- AC input: AC100~240V, 50/60Hz

- DC input: DC 10 ~ 15V, 4.5A

- Battery pack: Li-ion 11.1V, 3060mAh (BU-12L)

Electrode life: 3,000 arc discharges
