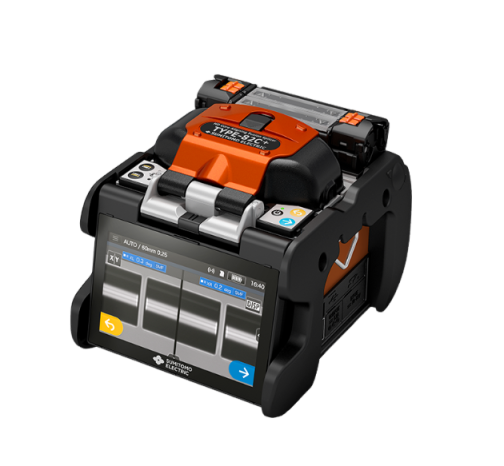

SUMITOMO TYPE-82C+ Core Alignment Fusion Splicer (Splice time 5s; Heating time 8s)

Optical fiber requirements:

- Material: Silica glass

- Fiber count/Profile types: Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), CSF(G.654), EDF

- Fiber diameter: Cladding diameter: 80 - 150µm; Coating diameter : 100-1,000µm

- Cleave length: 5-16mm with coating clamp

Standard performance

- Splice loss (typical): SMF : 0.01dB, MMF : 0.01dB, DSF : 0.03dB, NZDSF : 0.03dB

- Return loss (typical): 60dB or greater

- Splice time (typical): 5sec(SM G652 Quick Mode), 7sec(SM G652 Std. Mode), 7sec(Auto Mode)

- Heating time: 8sec (FPS-61-2.6 sleeve, S60mm 0.25 Quick Mode )

- Splice & Heat cycles per battery full charge: Approx. ~320 (BU-16)

- Fiber view & magnification: 2 CMOS cameras observation; 380X (zoom: 760X) for X or Y single axis view, 270 for both X & Y dual axis view

- Proof test: 1.96 - 2.09N

- Applicable protection sleeve: 60mm, 40mm & Sumitomo Nano sleeves

Programs

- Splice programs: Max. 300, 74 are pre-optimsed, 226 editable by user

- Heating programs: Max. 100, 27 are pre-optimsed, 73 editable by user

Functions

- Splice image capture/ Splice data storage: 200 images /10,000 splice data (internal memory only) 50,200/20,000 (with 8GB SD card)

- Automatic fiber identification: SMF / MMF / DSF / NZDSF / BIF / Other

Size/Weight

- Size: 128(W) x 154(D) x 130(H) mm (without anti-shock rubber)

- Weight: 1.9kg (without Battery) / 2.2kg (with Battery BU-16)

- Monitor: 5.0" touch screen color LCD display

Terminals:

- DC output: DC 12V (for JR-6+)

- USB port: USB 2.0 (mini-B type)

- Storage media: SD/SDHC memory card MAX32GB

Power supply:

- AC input: AC100~240V, 50/60Hz (ADC-16)

- DC input: DC 10~15V

- Battery pack: Li-ion 10.8V, 6,400mAh (BU-16)

Electrode life: 6,000 arc discharges
