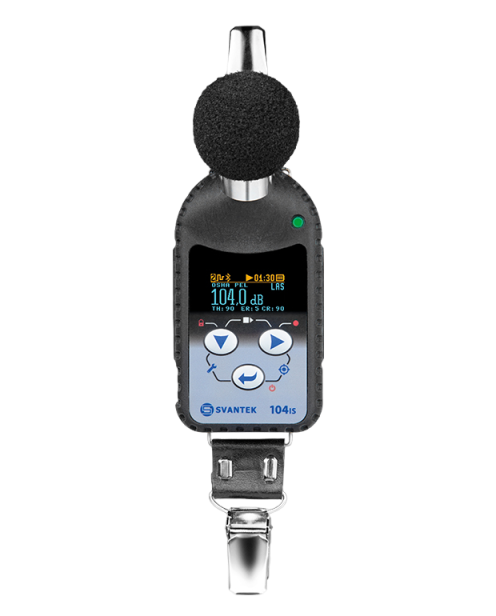

Svantek SV 104BIS Intrinsically safe noise dosimeter (Class 2; Zone 0 ATEX; 20 Hz–10 kHz; 53–143 dBA)

Name: Svantek SV 104BIS Intrinsically safe noise dosimeter (Class 2; Zone 0 ATEX; 20 Hz–10 kHz; 53–143 dBA)
Brand: Svantek

ManufacturerSvantek(View more products from this manufacturer)

ModelSV 104BIS

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Standards: IEC 61672-1:2013; IEC 61252 ed1.2 (2017), ANSI/ASA S1.25-1991 (R2020), IEC 61010-1:2010, ANSI/UL 61010-1 and CAN/CSA C22.2 No 61010-1; ATEX/IECEx: IEC 60079-0 ed7.0 (2017), IEC 60079-11 ed6.0 (2011), CAN/CSA C22.2 No 60079-0, CAN/CSA C22.2 No 60079-11, ANSI/UL 60079-0, ANSI/UL 60079-11

Hazardous Locations Markings: I M1 Ex ia I Ma; II 1G Ex ia IIC T4 Ga, -10 °C < Tamb < +50 °C

NRTL Device Marking: cQPSus, Ex ia IIC T4 Ga, Class I, Zone 0, AEx ia IIC T4 Ga

NRTL Certification For USA And Canada: Pending

Weighting Filters: A, C and Z

Time Constants: Slow, Fast, Impulse

Exchange Rates: 2, 3, 4, 5, 6

Microphone: ST 104B MEMS microphone, 1/2” housing, patented

Linear Operating Range: 53 dBA Leq ÷ 143 dBA Peak (in accordance to IEC 61672)

Dynamic Measurement Range: 46 dBA Leq ÷ 143 dBA Peak (typical from noise floor to the maximum level)

Frequency Range: 20 Hz ÷ 10 kHz

Dynamic Range: 100 dB

Measurement Results: Run Time (TIME), Lpeak, Lmax, Lmin, L, DOSE (%), D_8h, PrDOSE, Leq, LAV, LE, SEL8, E, E_8h, LEPd, PSEL, Ltm3, Ltm5, Lstat, PTC, PTP, ULT, TWA, PrTWA, Lc-a, OVL, No Motion Time

Measurement Profiles: 3 with independent settings of filters (x) and time constants (y)

Data Logger: Summary results for the measurement time and time-history logging of Leq/Max/Min/Peak with adjustable logger step down to 1 s

1/1 Octave Analysis (option): Real-time analysis meeting Class 1 requirements of IEC 61260, centre frequencies from 31.5 Hz to 8 kHz

1/3 Octave Analysis (option): Real-time analysis meeting Class 1 requirements of IEC 61260, centre frequencies from 20 Hz to 10 kHz

Audio Recording (option): Audio events recording, trigger and continuous mode, 12 kHz or 24 kHz sampling rate, WAV format

Voice Comments: Audio records on demand, created before or after measurement, added to measurement file

Memory: 8 GB

Display: OLED 128 × 64 pixels

Keyboard: 3 push buttons

Communication Interfaces: Bluetooth® 5.2, electrical contacts (docking station required)

Power Supply: Li-Ion rechargeable cell, operation time 45 hours¹

Environmental Conditions: Temperature from -10 °C to 50 °C, humidity up to 95 % RH, non-condensed
