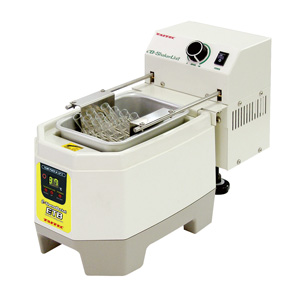

Applicable to: EIB, ECB, EHB, ETB (*1)
Shaking motion/speed: Reciprocal shaking, 30 to 150 r/min
Shaking width: 10 mm
Capacity:
1.5/2.0 mL Microtube × 20 pcs (approx. 30° tilted) (*2)
50 mL Disposable Centrifuge tubes × 4 pcs (approx. 30° tilted) (*3)
Platform size (W×D×H): 85 × 115 × 20 mm (Changeable height to Max. approx. 70 mm) (*3)
Maximum Load: Approx. 0.5 kg (Platform 0.29 kg is included)
Other function: Service outlet (Max. 14 A) × 1
Safe devices/protections: Fuse, Overcurrent/Overvoltage protection
Dimensions (W×D×H):
Main unit: 150 × 110 × 175 mm (Platform and Protrusions are not included) Combined: 170 × 374 × 246 mm
Weight: Approx. 3 kg (Combined: Approx. 5.2 kg)
Power supply: AC 100 V/0.25 A (Power consumption: approx. 4 Wh at 150 r/min) (*4)
Standard accessories: Spring net shaking platform × 1 pc, Aluminum tray × 1 pc
(*1)Cannot be used with the EFBN
(*2)24 pcs of Microtube can be loaded vertically to stand.
(*3)When using long vessels such as a 50 mL Disposable centrifuge tube, raise the position of the Spring net of the platform (Default setting height 20 mm from the bottom plate. Changeable height: Max. approx. 70 mm.)
(*4)Increases according to the amount of service outlet used. •Applies for only when using e-Bucketseries as a water bath. •Please note that the lid of the e-Bucket unit cannot be used when this unit is combined with the e-Bucket. Temp. range of EHB is up to 50℃ and ETB is up to 55℃.
