High frequency output: Maximum 300 W
Transducer normal output: 50 to 200 W (*)
Oscillation frequency range: 19 to 21 kHz
Tuning: Automatically
Operation mode:
– PWM operation: Automatic output adjustment according to viscosity change of sample
– POW operation: Stable oscillation when change in viscosity or temp are small
– SEN operation: Controls the output so the value of oscillation sensor inside is constant
Other functions:
– Timer operation (1 sec to 120 min)
– Programmed interval operation (ON: 3 to 60 sec, OFF: 1 to 60 sec)

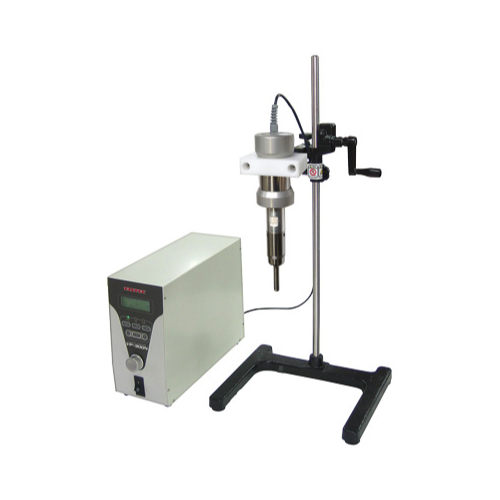

Configuration: Main unit, Converter, φ12 mm Standard horn (Preinstalled Tip)
Oscillation switch: Equipped in Main unit (Optional foot switch can be used)
Dimensions (W×D×H)/Weight: 143 × 360 × 283 mm, Approx. 6.7 kg
Standard accessories: Standard horn (φ12 mm: VP-HN12), Tip (φ12 mm: VP-ET12)
Power supply: AC100V/5A (Need a step-down transformer)
(*)The upper limit varies depending on the horn and the tip used.
