-Transmitter(TX)
+ Output frequencies
* 38kHz :38kHz±0.02% (Standard frequency)
* 9.5kHz :9.5kHz±0.02%
* 80kHz :78.125kHz ±0.02%
* 512Hz :512Hz ±0.02% (Direct connection mode ONLY)
* Dual :9.5kHz /38kHz ±0.02% (Direct connection mode ONLY)
+ Output power 5 watts maximum / 80kHz: 1 watts maximum
+ Operating Modes
*Direct connection mode, Inductive mode
* External coil mode (optional )
+ Battery type Eight Alkaline LR20 “D”
+ Battery Life
*Direct mode : 50 hours (Output 4mA , 20°C / 68°F)
* Inductive mode : 20 hours (Output 50% , 20°C / 68°F)
* Full Power(5W) : 10 hours (20°C / 68°F)
* Battery Status Low battery indication & Press key readout
- Visual Indication LCD : Bar graph & Digital number, includes Backlight
- Audio Indication Internal Speaker : Alarm, Beeping sounds
- Measuring function
* Output Current : 0 to 300mA
* Line Voltage : 0 to 250V
- Output protection AC 250V ( 512Hz: Output is cut off automatically)
- Operating Temperature -20°C to 50°C / -4°F to 122°F
- Dimensions
* When using: 261 * 314 * 110mm(10.3" * 12.4" * 4.3")
* When storaging: 227 * 314 * 110mm(8.9" * 12.4" * 4.3")
- Weight 3.7kg/ 8.2lbs approx. including eight batteries
- Receiver(RX)
+ Active Frequencies
* 38kHz : 38kHz ±2%
* 9.5kHz : 9.5kHz ±2%
* 80kHz : 78.125kHz ±2%
* 512Hz : 512Hz ±2%
+ Passive Radio Radio : 9k to 33kHz
+ Passive Power
* 50 / 60Hz : 5th harmonic ( 50 Hz or 60Hz user selectable)
* 100 /120Hz : 3ed harmonic ( 100 Hz or 120Hz user selectable)
+ Battery type Six Alkaline LR6 “AA”
+ Battery Life 24 hours (20°C / 68°F)
+ Battery Status Continuous indication
+ Power save function Automatically power off after 5minutes of inactivity
+ Visual Indication LCD : Bar graph , Digital number & character, include Backlight
+ Depth Display Range
* Line : 0 to 5m /16ft. ( 0-5m / 0-16ft. mode)
0 to 10m /30ft. (0-10m / 0-30ft. mode)
* Probe : 0 to 10m /30ft.
+ Depth Readout Unit Meter / ft. & inch
+ Depth Accuracy*1 2.0m / 6.5ft. : ±2.5%
* 3.0m / 10ft. : ±5%
* 5.0m / 16.5ft. : ±10%
+ Current value Current value flowing on the conductor is displayed for line identity in
milli-Amps.
+ Audio output Internal Speaker with sound volume adjusting function , Earphone
( optional )
+ Data logging Memorized 400 points of the depth / the current measurement/ the date and
time data.
+ Interface USB cable
+ Operating Temperature -20°C to 50°C / -4°F to 122°F
+ Dimensions 660 * 130 * 270mm (26.0" * 5.1" * 10.6")
+ Weight 2.1kg/ 4.7lbs approx. including eight batteries
Include:

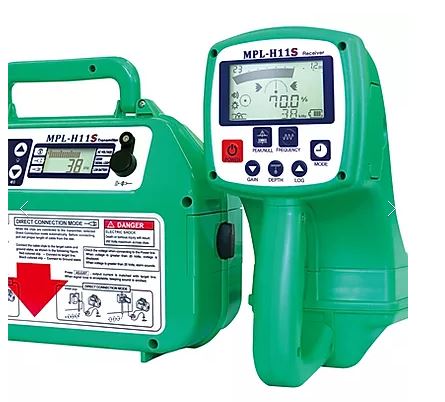

- Transmitter Unit- 1pc Used as a signal generator.
- Receiver Unit -1pc Digital locator
- 38kHz External coil - 1pc Used for External coil mode
- Connecting cable - 1pc Used for Direct connection mode
- Ground rod - 1pc Used for Direct connection mode
- Operating manual - 1pc English version
- Data viewer software - 1pc Provided on the CD
