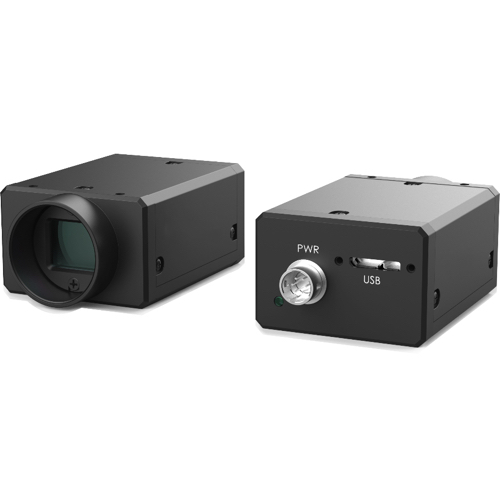

Type: 12MP Area Scan Camera, USB3, IMX304, High-speed version, Mono
Sensor type: CMOS, global shutter
Sensor model: IMX304
Pixel size: 3.45 μm × 3.45 μm
Sensor size: 1.1 inch
Resolution: 4096 × 3000
Max. frame rate: 30.3 fps@4096 × 3000 Mono 8
Dynamic range: 72.2 dB
SNR: 40.2 dB
Gain: 0 dB to 24 dB
Exposure time: UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono/color: Mono
Pixel format: Mono 8/10/10Packed /12/12Packed
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Decimation: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output
Data interface: USB3.0
Digital I/O: 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply: 9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption: Typ. 4.67 W@5 VDC (USB3.0 provides power supply)
Lens mount: C-mount
Dimension: 44 mm × 29 mm × 59 mm
Weight: Approx. 100 g (0.2 lb.)
Ingress protection: IP30 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: 20% to 80% RH, non-condensing
Client software: MVS or third-party software meeting with USB3.0 Vision Protocol
Operating system: 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility: USB3 Vision, GenlCam
Certification: CE, RoHS, KC
