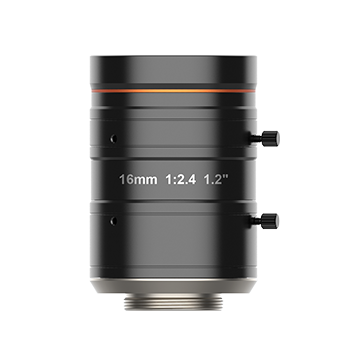

Focal length: 16 mm
F-Number: F2.4 ~ F16
Image Size: Φ19.3 mm(1.2 inch)
Distortion: 0.07%
Minimum Operation Distance: 0.1 m
Field of View: D（19.30mm): 61.61°, H（14.60mm): 48.82°, V（12.63mm): 42.89°
Iris Control: Manual
Focus Control: Manual
Filter Thread: M40.5×0.5
Mount: C-Mount
Flange Back Length: 17.526 mm
Dimension: Φ42.5×59.8 mm
Weight: 186 g
Temperature: -10 ~ 50℃
Ultra high resolution and consistency of image clarity
1.2" image Format, bigger aperture, lower distortion, Higher illumination relativ
Achromatic optical system design, Better imaging performance with color camera
Maintain excellent optical properties at different object distances
Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
Multilayer and broadband coating design, compatible with visible and near infrared applications
