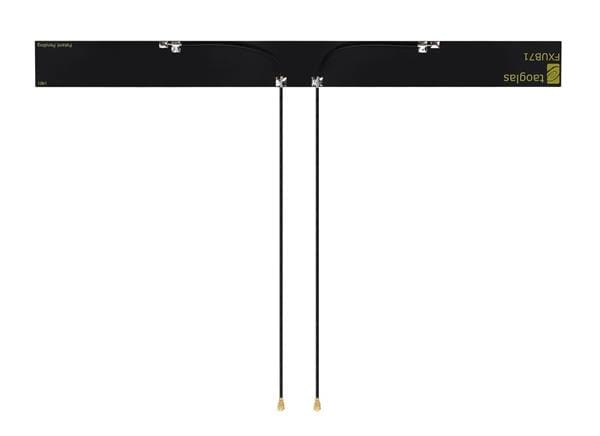

Style: T-Bar Flex
Width: 21 mm
Height: 0.15 mm
Length: 240 mm
Impedance: 50 Ohms
Cable Type: 150 mm RF1.37
Compliance: 1.37 mm Coax
Technology: Cellular, LTE, MiMo
Application: Wide-band Application
Unit Weight: 5 g
Cable Length: 150 mm
Polarization: Linear
Power Rating: 2 W
Mounting Style: Adhesive Mount
Electrical Type: Embedded
Number of Bands: 1 Band
Center Frequency: 657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 6 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: IPEX MHF1
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, GPRS
