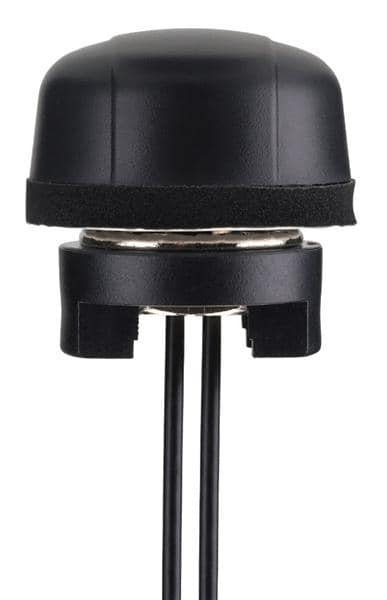

Style: Dome
Length: 29 mm
Diameter: 49 mm
IP Rating: IP67, IP69K
Impedance: 50 Ohms
Cable Type: 2 M RG316 x 2
Application: Smart Metering, Routers, Gateways, Connected Enterprise
Cable Length: 2 m
Polarization: Linear
Power Rating: 10 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 2 Band
Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5200 MHz, 5800 MHz, 2450 MHz, 5500 MHz
Mechanical Style: Module
Maximum Frequency: 5.925 GHz
Minimum Frequency: 700 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: RP-SMA Male, SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
