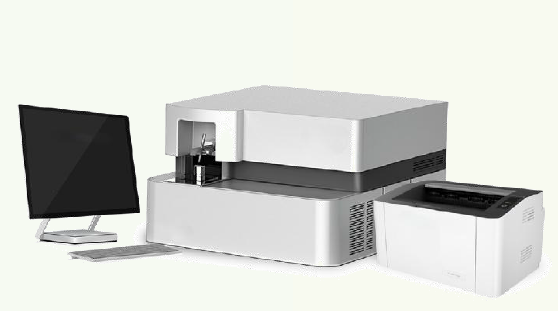

TBT CX-9800 Spectrometer

1. Panchen-Runge Mount Structure, Rowland circle optical system

2. Diameter of Rowland circle：400mm

3. Wavelength Range：130—800 nm

4. Detector：Multi high resolution CCD detector

5. Optical chamber temperature：Temperature auto control：34℃±0.5℃

6. Pixel Resolution：30pm

7. Optical grating groove：3600 l/mm

8. Level One spectral dispersive power：1.2 nm/mm

9. External Incident window, convenient cleaning and replacement

10. Excellent drift correction, thanks to automatic peak-finding(accuracy of 0.1 pixels)

11. Excellent UV sensitivity, thanks to the new improved vacuum technology
