Manufacturer: TECLOCK
Model: IM-882
Origin: Japan
Warranty: 12 months
Measuring Range: 55~153 mm
Graduation: 0.01 mm
Indication Error: ±0.02 mm
Maximum Measuring Depth: 90 mm
Minimum Groove Width: 3.5 mm
Measuring Force: ≤ 3 N
Weight: 240 g
Catalog

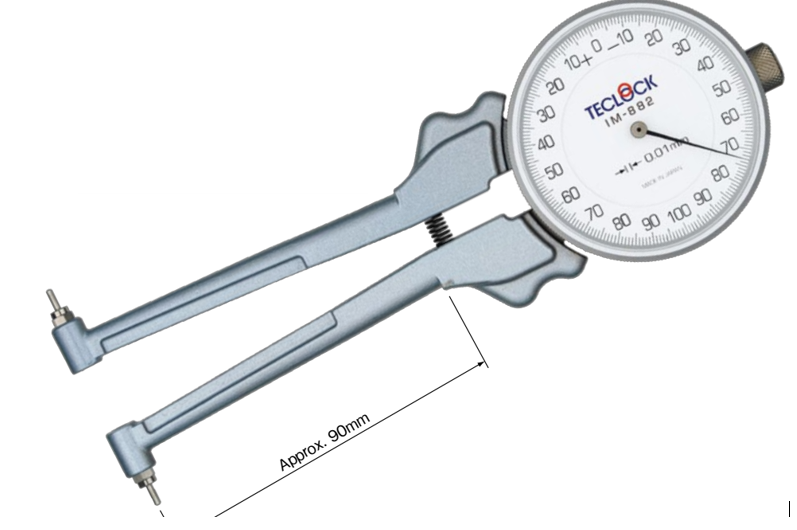

• Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point.
• Set dimension within ±1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension.
• Please set standard dimension within measuring range with micrometer or ring gauge.
