TECLOCK SD-465A Digital Sensor Gauge (12-150mm/0.001mm)

Name: TECLOCK SD-465A Digital Sensor Gauge (12-150mm/0.001mm)
Brand: TECLOCK
Availability: OutOfStock

ModelSD-465A

OriginJapan

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: TECLOCK

Model: SD-465A

Origin: Japan

Warranty: 12 months

Measuring Range: 12(150) mm

Resolution: 0.001 mm

Gauge Error: ±0.003 mm

Specimen Table Size: W80×D80

Power Supply: DC 3V (AA size battery×2)

Weight: 3.4 kg

Catalog

• Springs and pressed parts which are used for precision equipments, computer terminal and home

electric goods can be measured just before their shapes are changed due to measuring force.

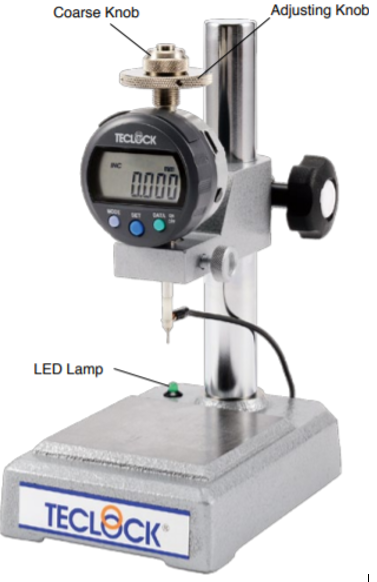

• If detecting contact between sensor (contact point) and work piece by energizing, it simultaneously

sounds (buzzer) when LED lamp is lighting.. Then read the value which is detected.

• Micro-motion is adjusted by 12mm with upper knob.

• Work piece of maximum 150mm can be measured by using block gauge.

• As detection is implemented by energizing, work piece which is not energized can not be measured.
