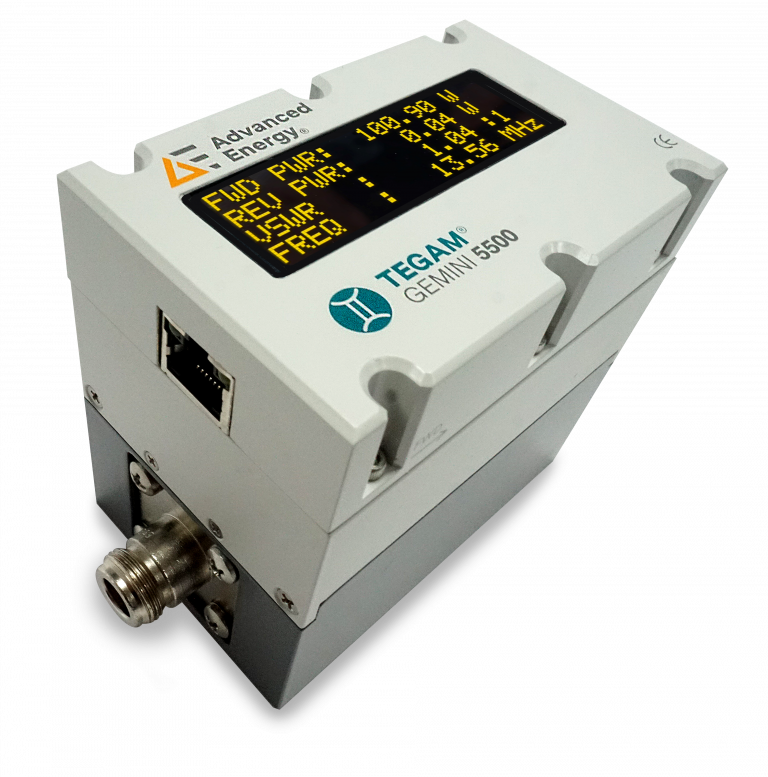

TEGAM GEMINI 5541A RF power meter (0.2 ~ 200 MHz)

General specification

Measurement Ranges

Frequency (MHz): 0.2 to 200

Forward Power (W): 3 to 5,000 (Connector dependent)

Reverse Power (W): 3 to 250

Basic Power

Accuracy (2σ, approx. 95% confidence): ± (0.5% of Rdg + 0.5 W) at the calibrated frequencies (see Certificate of Calibration) 1-Year

Measurements: Forward Power, Reverse Power, VSWR, and Frequency

Impedance: 50 Ω

Directivity: ≥ 28 dB (Typical)

VSWR: Better than 1.05 : 1 below 60 MHz

Insertion Loss: < 0.05 dB with QC Type N connectors

Connector Type: Input and output connector configurations are specified by customer at time of purchase. Available connectors are: N, HN, LC, 7/16 DIN, 7/8 EIA, and QDS-UL

Display: 6-Digit Auto-Resolution OLED Display

Display Resolution: Up to 6 digits (2 digits past decimal point)

Power (W): 0.01

Frequency (MHz): 0.01

Power / Data Connector: IEEE 802.3af PoE (Power over Ethernet)

Compliance:

EN 61326-1:2013

CE (2014/30/EU) / RoHS3 (2015/863/EU) / REACH

IEC 61326-1 / 61326-2

Operating Temperature: +18 to +28 °C (+64.4 to +82.4 °F)

Storage Temperature: -40 to +71 °C (-40.0 to +159.8 °F)

Recommended Calibration Interval: 12 months

Approximate Dimensions (W x H x D, including Type N connectors): 140 x 71 x 64 mm (5.5 x 2.8 x 2.5 in)

Weight: 1103 g (2.44 lbs)
