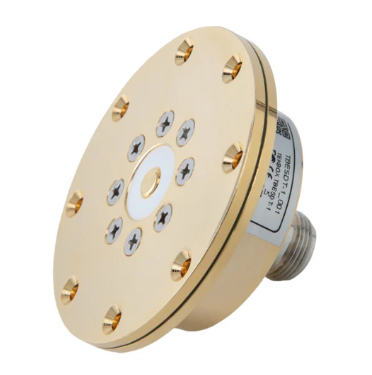

Tekbox TBESDT2 Current sensing transducer (1 Ω ± 1%, DC – 4 GHz)

Compliance: IEC 61000-4-2

Resistance: 1 Ω ± 1%

Transfer impedance:

1 V/A

0.1 V/A with 20 dB attenuator

Frequency range: DC – 4 GHz

S21 flatness:

± 0.5 dB up to 1 GHz

± 1.2 dB up to 4 GHz

Max. pulse amplitude: ± 30 kV

Deliverables:

TBESDT2 ESD-Target

20 dB attenuator

N-Male to SMA-Male coaxial cable 100 cm, RM141

SMA-Female to BNC-Male coaxial adapter

Aluminum carrying case

Factory calibration certificate, NIST traceable

ESD-Target weight: 0,5 kg

ESD-Target dimensions: D70 mm x H40 mm

Case weight: 2.1 kg

Case dimensions: 340 mm x 260 mm x 110 mm

Manual
