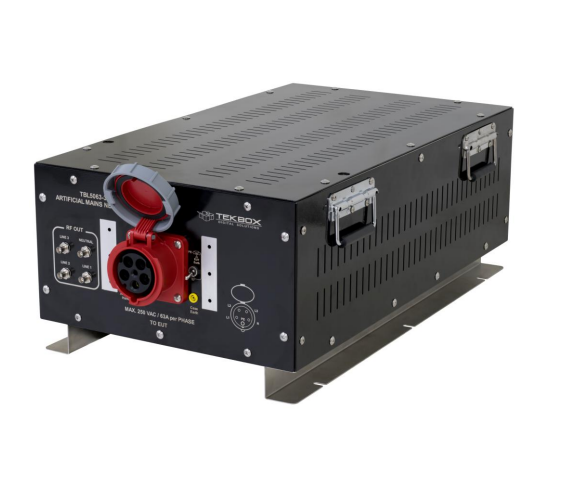

Tekbox TBL5063-3 Line Impedance Stabilization Network (9 kHz~30 MHz; 50 Ω║(50 µH + 5 Ω))

Name: Tekbox TBL5063-3 Line Impedance Stabilization Network (9 kHz~30 MHz; 50 Ω║(50 µH + 5 Ω))
Brand: Tekbox

ModelTBL5063-3

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

• Frequency range: 9 kHz to 30 MHz

• Impedance: 50 Ω ║ (50 µH + 5 Ω)

• Artificial hand: 220 pF + 511 Ω

• Switchable PE: 50 Ω ║ 50 µH

• 250µH pre-filter

• Air core inductors

• Line voltage: max. 690V/400V, 50 – 60 Hz

• Max. current: 63A @ 23°C for each phase and neutral

• 3-phase EUT socket: CEE / IEC60309, 3L+N+PE, 63A, female

• Power connector: CEE / IEC60309, 3L+N+PE, 63A, male

• Measurement connector: 50 Ω BNC, separate outputs for each line and phase; external 9 kHz HPF

• Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH

• Weight: 51 kg, length: 970mm, width: 500 mm, height: 300 mm
