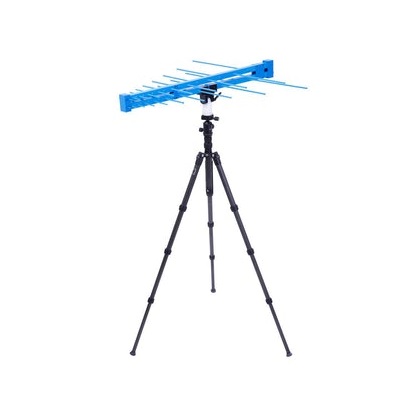

Type: logarithmic periodic
Frequency range: 250 MHz– 1300 MHz
Nominal impedance: 50 Ω
Connector: N type female
Maximum continuous input RF power: 100 W
Isotropic gain: 6 dBi ± 1.5 dB
Antenna factor: 14.2 … 27.5 dB/m
Voltage Standing Wave Ratio (VSWR): < 1.95:1 over the entire frequency range ; 1.35:1 average
Width: 749 mm (29.49”)
Height (With the mounting adapter): 170.23 mm (6.70”)
Height (Without the mounting adapter): 79.5 mm (3.13”)
Depth: 863 mm (33.98”)
Weight: 1.78 kg (3.92 lbs)
Tripod Adapter Thread Size: ¼”
