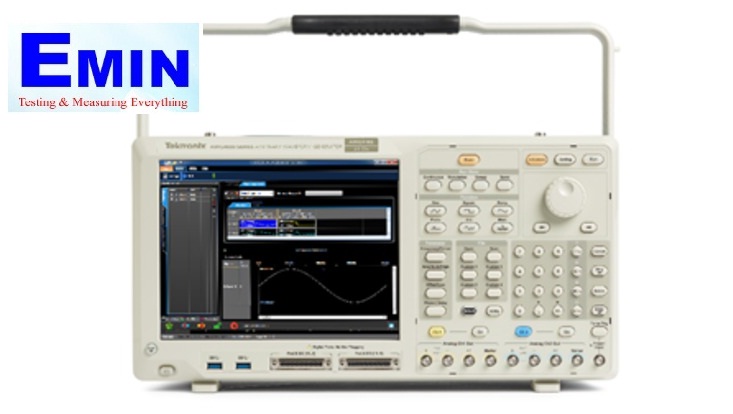

Analog channels 2
Digital channels 0/16/32-bit optional
Markers 2
Operation modes
Basic DDS mode
Standard waveforms Sine, Square, Pulse, Ramp, more (Noise, DC, Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine)
Run modes Continuous, modulation, sweep, burst
Arbitrary waveforms Sampling clock: 2.5 GS/s, fixed
Vertical resolution: 14-bit
Waveform length: 16,384 points
Advanced AWG mode
Run modes Continuous, sequencer, triggered, gated
Sampling clock 100 S/s to 2.5 GS/s, variable
Vertical resolution 14-bit
Waveform length 64 to 64 M points (1 M = 220) in multiple of 64 points for length < 320 points, in multiple of 16 points for length ≥ 320 points
Standard: 1 M points
Optional: 16 M, 32 M, 64 M points
General characteristics - Basic mode
Connectors SMAs for DC AMP on front panel
Output types Single-ended or differential
Output impedance 50 Ω (Single-ended) or 100 Ω (differential)
Frequency range
Sine 1 μHz to 600 MHz
Square 1 μHz to 330 MHz
Pulse 1 μHz to 330 MHz
Ramp, Exponential Rise,
Exponential Decay
1 μHz to 30 MHz
Sin(x)/X, Gausian, Lorentz,
Haversine
1 μHz to 60 MHz
Arbitrary 1 μHz to 400 MHz
Frequency resolution
sine, square, pulse, arbitrary 1 μHz or 15 digits
Ramp, Sin(x)/X, Gausian,
Lorentz, Exponential Rise,
Exponential Decay, Haversine
1 μHz or 14 digits
Frequency accuracy
non-ARB ±10-6 of setting
ARB ±10-6 of setting ±1 μHz
Sine waves
Flatness (1 Vp-p, relative to
1 kHz)
DC to 600 MHz : ±0.5 dB
Harmonic Distortion (1 Vp-p) 1 μHz to ≤ 10 MHz: < -60 dBc
> 10 MHz to ≤ 50 MHz: < -55 dBc
> 50 MHz to ≤ 200 MHz: < -40 dBc
> 200 MHz to ≤ 600 MHz: < -28 dBc
Total Harmonic Distortion
(1 Vp-p, typical)
10 Hz to 20 kHz: < 0.1%
Weight (typical)
Net weight 6.5 kg (14.2 lbs)
Net weight with packaging 11.5 kg (25.2 lbs)
Dimensions
Height 233 mm (9.17 in.)
Width 439 mm (17.28 in.)
Depth 199 mm (7.82 in.)
Dimensions with packaging
(typical)
Height 498 mm (19.61 in.)
Width 457 mm (17.99 in.)
Depth 574 mm (22.60 in.)
