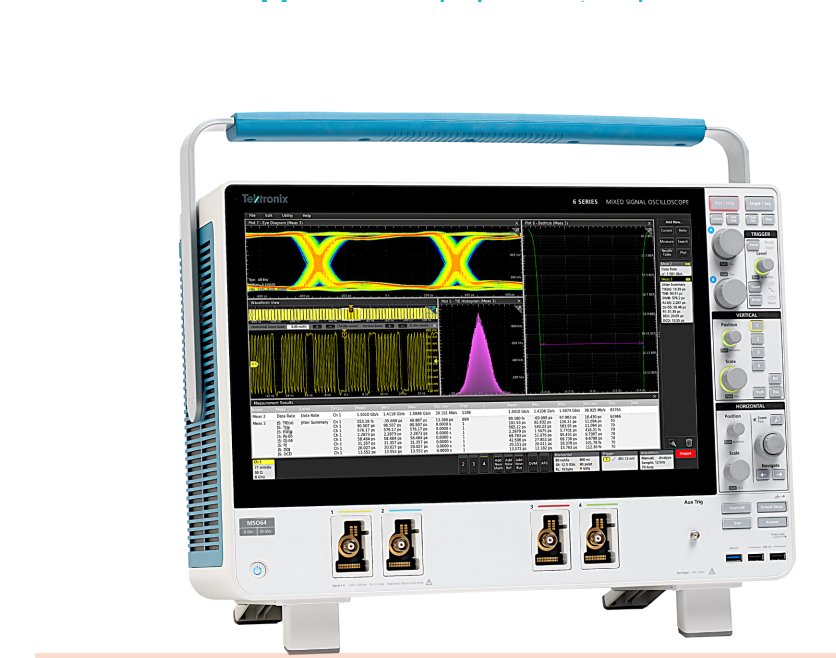

Analog channel bandwidth 1Ghz
Sample rate (1 ch) 25 GS/s
Record length (1 ch) 62.5 M
Vertical Resolution 8 bits @ 25 GS/s; 8 GHz on all channels
12 bits @ 12.5 GS/s; 4 GHz on all channels
13 bits @ 6.25 GS/s (High Res); 2 GHz on all channels
14 bits @ 3.125 GS/s (High Res); 1 GHz on all channels
15 bits @ 1.25 GS/s (High Res); 500 MHz on all channels
16 bits @ ≤625 MS/s (High Res); 200 MHz on all channels
Sample Rate 25 GS/s on all analog / digital channels (160 ps resolution)
Record Length (std.) 62.5 Mpoints on all analog / digital channels
Waveform capture rate
>500,000 waveforms/s
Standard trigger types
Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/
Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional)
Auxiliary Trigger ≤5 V RMS , 50Ω, 400 MHz (Edge Trigger only)
Standard analysis
Cursors: Waveform, V Bars, H Bars, V&H Bars
Measurements: 36
Spectrum View: Frequency-domain analysis with independent controls
for frequency and time domains. RF vs. time traces (magnitude,
frequency, phase)
FastFrame TM :
Segmented memory acquisition mode with maximum
trigger rate >5,000,000 waveforms per second
Plots: Time Trend, Histogram, Spectrum and Phase Noise
Math: Basic waveform arithmetic, FFT, and advanced equation editor
Search: Search on any trigger criteria
Jitter: TIE and Phase Noise
