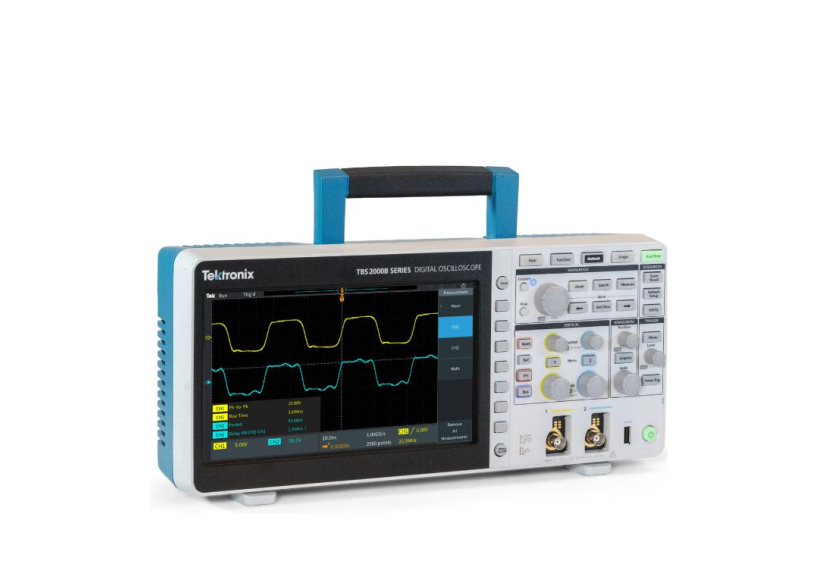

TBS2102B
Analog channels 2
Bandwidth 100 MHz
Sample rate 2 GS/s
Record length 5 M points
Hardware bandwidth limits 20 MHz
Input coupling DC, AC, or GND
Input impedance 1 MΩ ± 1 %, 13 pF ± 1.5 pF
Input sensitivity range 2 mV/Div to 10 V/Div
Vertical resolution 8 bits
Maximum input voltage, 1 MΩ 300 V RMS with peaks ≤ ±450 V
Time base range 2 ns/div to 100 sec/div
Time-base delay time range -15 divisions to 5000 s
Deskew range ±100 ns
Time base accuracy ±25 ppm over any ≥1 ms interval
Trigger system
Trigger modes Auto, Normal, and Single
Trigger holdoff range 20 ns to 8 s
Display type 9 inch (228 mm) wide format liquid crystal TFT color display.
Display resolution 800 horizontal by 480 vertical displayed pixels (WVGA).
Waveform styles Vectors, Variable Persistence, and Infinite Persistence.
Graticules Grid, None.
Format: YT and XY.
Power source
Power source voltage: 100 to 240 VAC RMS ±10%
Power source frequency: 47 Hz to 63 Hz (100 to 240 V); 360 Hz to 440 Hz (100 to 132 V)
Power consumption: 40 W maximum
Physical characteristics:
Dimensions:
TBS2xx2: Height: 174.9 mm (6.89 in)
Width: 372.4 mm (14.66 in)
Depth: 117.7 mm (4.64 in)
Probes:
TPP0100 100 MHz, 10x passive probe (one per analog channel)
Accessories 063-4568-xx Documentation CD
071-3635-xx Compliance and Safety Instructions
077-1149-xx Programmer manual, available on documentation CD and on Tek Web
- Power cord
- Calibration certificate documenting traceability to National Metrology Institute(s) and
ISO9001 quality system registration
