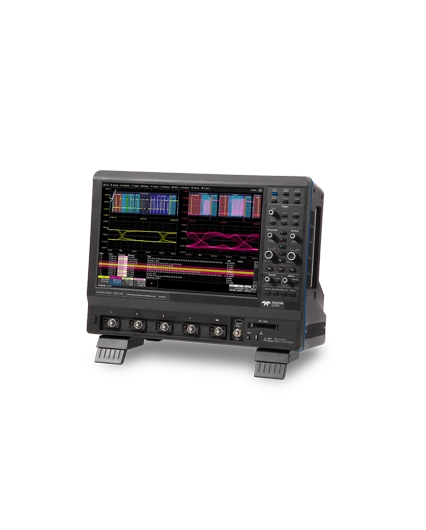

Vertical - Analog Channels
Analog Bandwidth (Max): 500 MHz
Bandwidth: 500 MHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input): 500 MHz (≥2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input): 500 MHz (typical)
Rise Time (10-90%, 50 Ω): 700 ps (typical)
Rise Time (20-80%, 50 Ω): 480 ps (typical)
Input Channels: 4
Vertical Resolution: 8 bits; up to 11 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB): 7.1
Sensitivity: 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy): ±(1%) FS, offset at 0 V
Horizontal - Analog Channels
Timebases: Internal timebase common to 4 input channels; an external clock may be applied at the EXT input
Acquisition Modes: Real-time, Roll, Random Interleaved Sampling (RIS), Sequence
Time/Division Range:
20 ps/div - 1.6 ks/div
RIS available at ≤ 10 ns/div
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy: <=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Sample Clock Jitter:
up to 10µs Acquired Time Range: 100fsrms (Internal Timebase Reference)
up to 10ms Acquired Time Range: 360fsrms (Internal Timebase Reference)
Channel-Channel Deskew Range: ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input): 10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output): 10MHz, 3.0 dBm +/-1 dBm, sinewave synchronized to reference being used (internal or external reference)
External Clock : DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies
Acquisition - Analog Channels
Sample Rate (Single-shot):
10 GS/s on 4Ch
20 GS/s on 2 Ch
Sample Rate (Repetitive): 200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments): 16M / 32M / 32M (5,000)
Intersegment Time: 1 µs
Averaging: Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Display System
Size: Color 15.4 widescreen capacitive touch screen
Resolution: WXGA; 1280 x 800 pixels.
Size and Weight
Dimensions (HWD): 12.44H x 16.42W x 9.37D (316 x 417 x 238 mm)
Weight: 22.8 lbs. (10.3 kg)
