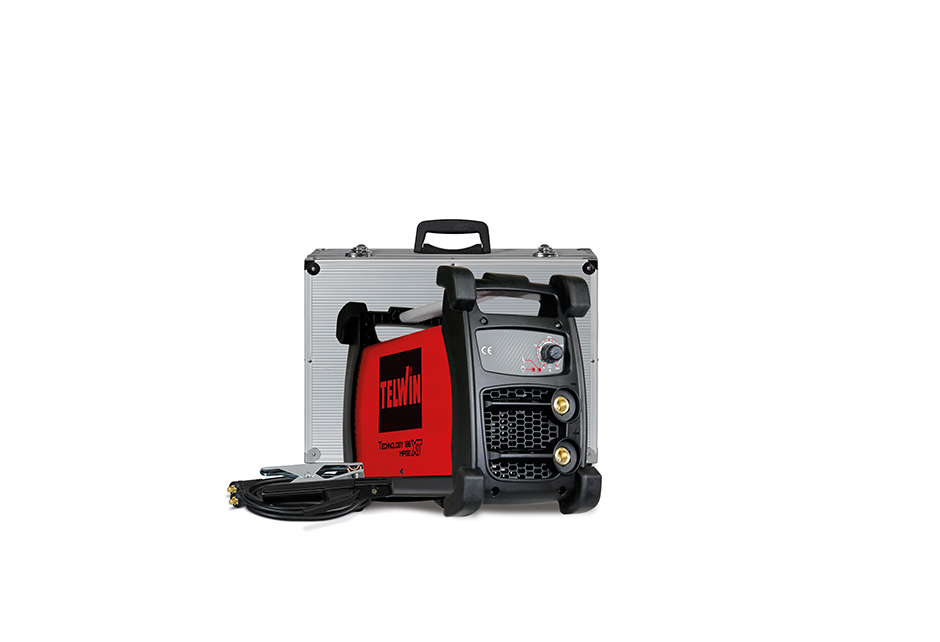

Telwin TECHNOLOGY 186 XT MPGE MMA INVERTER (1,6~4mm)

MAX NO LOAD VOLTAGE: 60 V

EFFICIENCY: 90 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED CURRENT: 32 A

POWER FACTOR (cosphi): 0,7

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 18A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

CURRENT RANGE: 5 - 160 A

MAX ABSORBED POWER: 5 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 160 @35 % A

ABSORBED POWER AT 60% 2,7 kW

DIMENSIONS: 37,5 x 50 x 22 cm

DC CURRENT: 120 A

MOTORGENERATOR MINIMUM POWER: 7 kW

WEIGHT: 10,1 kg

Included Accessories

CABLE - 124887

DALLAS 300 ELECTRODE HOLDER 300A - 712260

CABLE TW05V-A 1X025 02.00M PLUG ATLAS - 125033

ALUMINIUM CARRY CASE - 734600

TOLEDO 250 WORK CLAMP 250A - 712030
