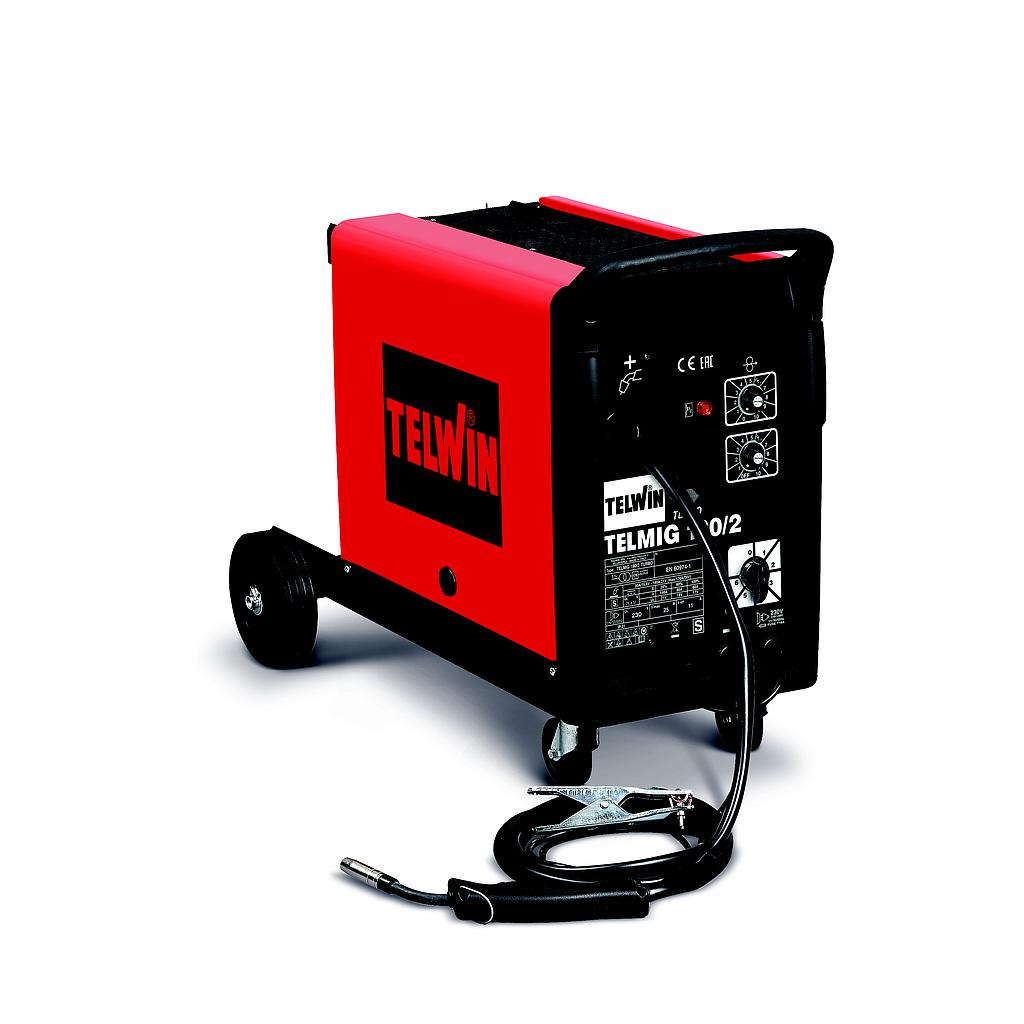

Telwin TELMIG 180/2 TURBO MIG-MAG 1PH (0,6 - 1 mm)

MAX NO LOAD VOLTAGE: 31 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED POWER: 5,2 kW

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT: 60% 2,3 kW

CURRENT RANGE: 30 - 170 A

MAINS FUSE: 16 A

PROTECTION DEGREE: IP21

MAX CURRENT DC (EN 60974-1): 140 @ 20 % A

POWER FACTOR (cosphi): 0,9

DIMENSIONS: 80 x 45 x 57 cm

DC CURRENT: 80 A

ADJUSTMENT POSITIONS: 6

STEEL WELDING WIRE DIAMETER: 0,6 -0,8 mm

INOX WELDING WIRE DIAMETER: 0,8mm

ALUMINIUM WELDING WIRE DIAM.: 0,8 - 1 mm

WEIGHT: 37 kg

Included Accessories

CABLE 25 MMQ 1.8M - 124590

TOLEDO 250 WORK CLAMP 250A - 712030

SPACER - 322499

GAS REGULATOR REFILLABLE BOTTLE - 722341

ARGON GAS BOTTLE IT ADAPTOR - 432036

MIG TORCH 2.5M - 742393
