Application

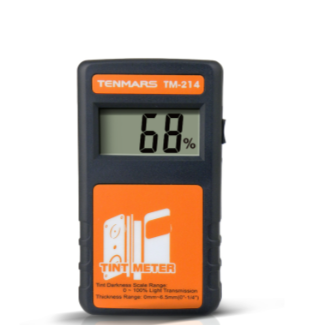

The separate Tint Meter measures the transmittance for use on all automotive windows, including insulation paper, organic material, painting, coating material, film, glass, and plastic sheet. This meter also has the ability to measure the sun blocking capabilities of window curtains. The police and inspection stations can use it to measure the total visible light transmittance (VLT).
Features
- Auto power off: the transmitter auto-power off in 60 seconds, and the receiver auto-shutdown in 90 seconds.
- Battery life: 4000 continuous measurements
- Continuous use function
- Auto data hold function
Specifications
Display: 3-digit LCD. The maximum display value is up to 999.
Dimension: 107x60x30mm
Weight: Approximately 135g(batteries not included).
Battery: 3V CR2032 X 2.( one per each device)
Operation temperature and humidity: 0 oC to 50oC, <80%RH (No condensation)
Storage temperature and humidity: -70ºC to 50ºC, <80%RH
Electrical specifications
Accuracy is indicated as [% rdg + dgt] .
Environmental conditions at 23°C ± 5°C with RH < 80%.
Measurement Range of Transmittance: 0% -100%
Measurement Range of Thickness: 0mm-6.5mm(0"-1/4")
Accuracy: ±2% (Calibration and traceable light source A 2856˚K )
Repeatability: ±1%
Response time: 4 seconds
Resolution : 1%
