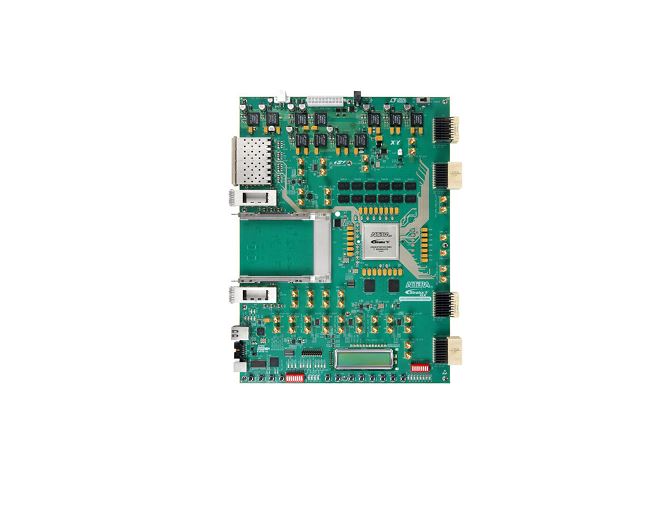

Terasic S5GX-100G Altera 100G Development Kit, Stratix V GX Edition

Stratix V GX development board
Featured device: 5SGXEA7N2F45C2N
EPM2210F324C3N, MAX® II 324-pin CPLD
FPGA configuration
Fast Passive Parallel (FPP) configuration
1-Gb flash storage for two configuration images (factory and user)
On-board USB-Blaster™ II cable for use with the Quartus® II Programmer, Nios® II software and System Console
JTAG header for external USB-Blaster cable
Memory
Twelve 2-Gb DDR3 SDRAM
Two 72-Mb QDR II SRAM
General user input/output
Four user push buttons
Two DIP switches
Eight user LEDs
Two-line character LCD
Ten configuration status LEDs
Components and interfaces
10/100/1000 Ethernet PHY and RJ-45 jack
48 transceiver channels
Two channels for SMA interface
Four channels for SFP+ interface
Eight channels for QSFP interface
10 channels for CFP interface
24 channels for Interlaken interface
Temperature measurement circuitry
Die temperature
Power
19-V DC input
2.5-mm barrel jack for DC power input
On/off power slide switch
On-board power measurement circuitry

Catalog

Altera's 100G Development Kit, Stratix^® V GX Edition enables a thorough evaluation of 100G designs by allowing you to:

• Support 10G/40G and 100G line interfaces through optical modules
• Support applications requiring external memory interfaces, through 6x32-bit DDR3 and 1x36- and 1x18-bit QDRII BL2 memory banks
• Use system-side interfaces via two pairs of FCI AirMax connectors
• Complete line-side (optical modules) to system-side (AirMax connector) datapath analysis
• Evaluate transceiver performance up to 12.5 Gbps
• Verify physical medium attachment (PMA) compliance to 10G/40G/100G Ethernet, Interlaken, CEI-6G/11G, and other major standards
• Validate interoperability between optical modules, such as SFP, SFP+, QSFP, and CFP
