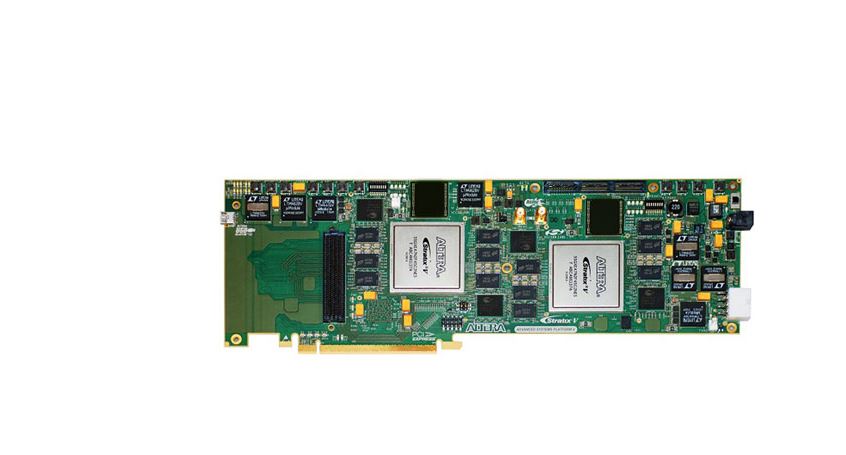

Terasic Altera Stratix V Advanced Systems Development Kit

1. Featured devices
5SGXEA7N2F45C2N = FPGA 1
5SGXEA7N2F45C2N = FPGA 2
5M2210ZF256C4N system controller
EPM570F100C5N on-board USB-BlasterTM II cable
2. External memory interfaces
FPGA 1
3072 MB 2x64+2x32 DDR3 SDRAM
9 MB 2x18 QDRII+ SDRAM
72 MB 4x72 MoSYS SRAM (10x10G XCVR)
32 MB serial flash
FPGA 2
3072 MB 2x64+2x32 DDR3 SDRAM
9 MB 2x18 QDRII+ SDRAM
72 MB 4x72 MoSYS SRAM (10x10G XCVR)
32 MB serial flash
CPLD
1 GB parallel flash for PFL
3. Clocks
50 MHz, 100 MHz, and 125 MHz programmable oscillators
SMA input (LVDS)
4. General user input and output
Each FPGA has 1 8-position dual in-line package (DIP) switch
Each FPGA has 16 user LEDs
Each FPGA has 3 user push buttons
5. Communication interfaces
PCIe x16 edge connector to PLX PE8747 Gen3 Switch
One PCIe Gen3 x8 to each FPGA
1 FMC connector (FPGA 1)
1 HSMC port (FPGA 2)
USB 2.0 on-board USB-Blaster II cable
6. Power
Laptop DC input
PCIe edge connector

Catalog

The Stratix^® V Advanced Systems Development Kit is a complete systems design environment that includes both the hardware and software needed to begin architecture development and system design using Stratix V FPGAs. The PCI Express^® (PCIe^® )-based form-factor board combined with a one-year license for the Quartus^® II software provide all that is needed to begin architecture development for a variety of applications. You can use this development kit to:

• Prototype and breadboard designs that take advantage of the widest bandwidth PCIe Gen3, x16 lane interfaces
• Develop and test memory subsystems consisting of DDR3, QDR II+, and MoSys^® High Density serial interface memory
• Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to one of over 40 different HSMCs provided by Altera partners and supporting protocols such as Serial RapidIO^® , 10-Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others
• Utilize many third-party FMC modules to further expand connectivity to additional standard high-rate protocol modules like SFP+, QSFP, multi-rate SDI, DVB, and Ethernet AVB
• Combine all of these capabilities to prototype and demonstrate a full multi-FPGA complex processing system
