◈ Mechanical Specifications

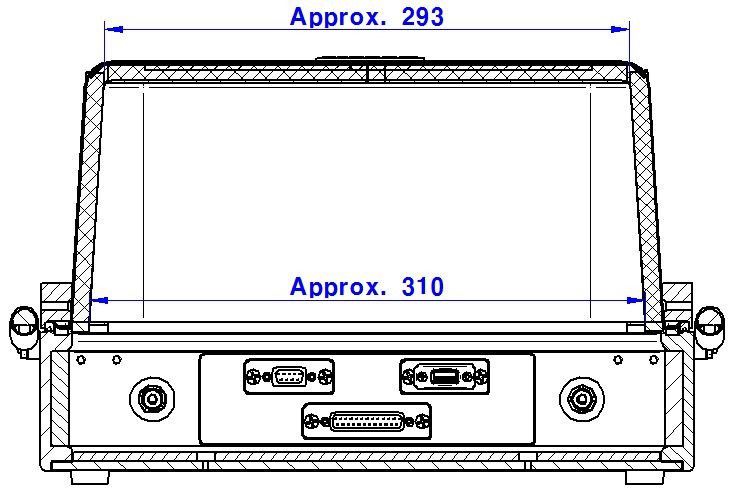

Basic I/O connectors
RF connectors : two(2) N(f) outside and SMA(f) inside
Dimension

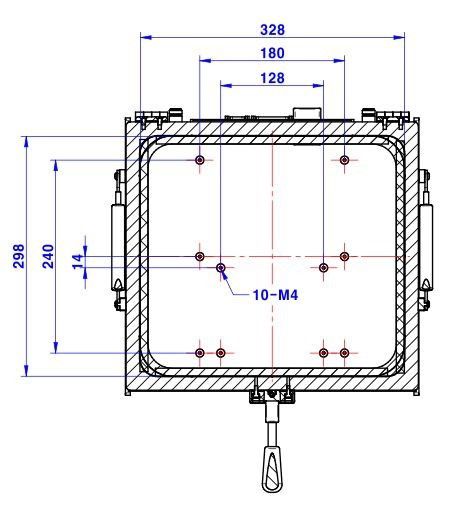

- Inside : 328(W) x 298(D) x 206(H) mm

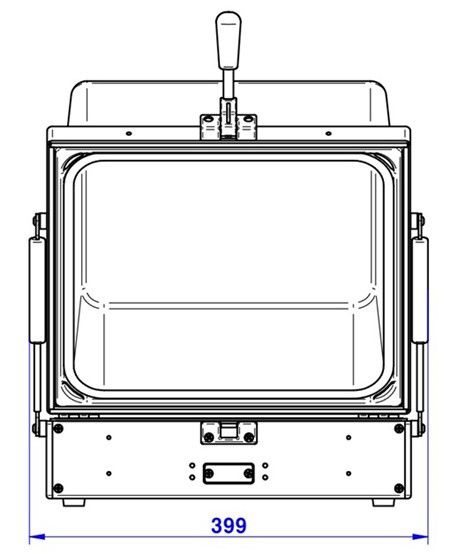

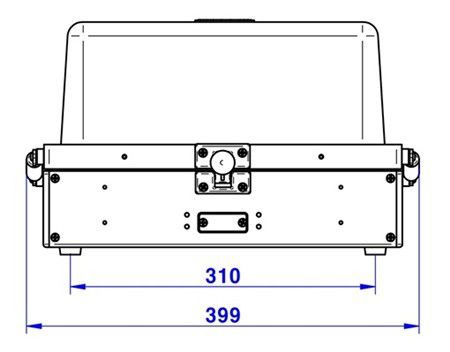

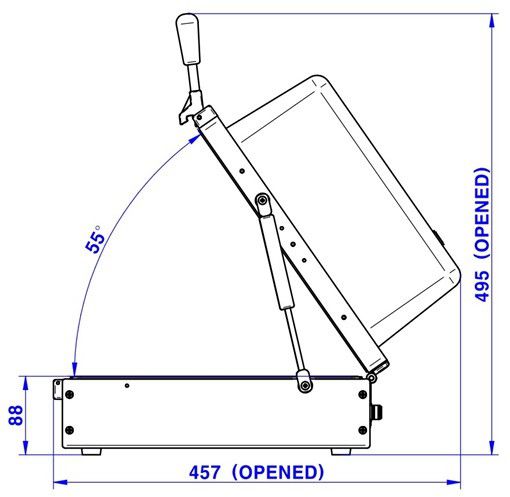

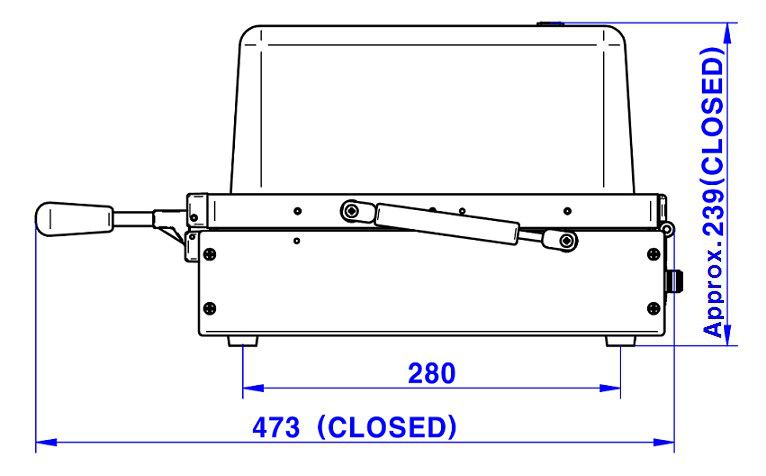

- Outside : 399(W) x 473(D) x 239(H) mm, lid closed. 495(H) mm, lid open.
Weight : Approx. 10kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 460(W) x 530(D) x 340(H) mm
- Weight : Approx. 11 kg
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
